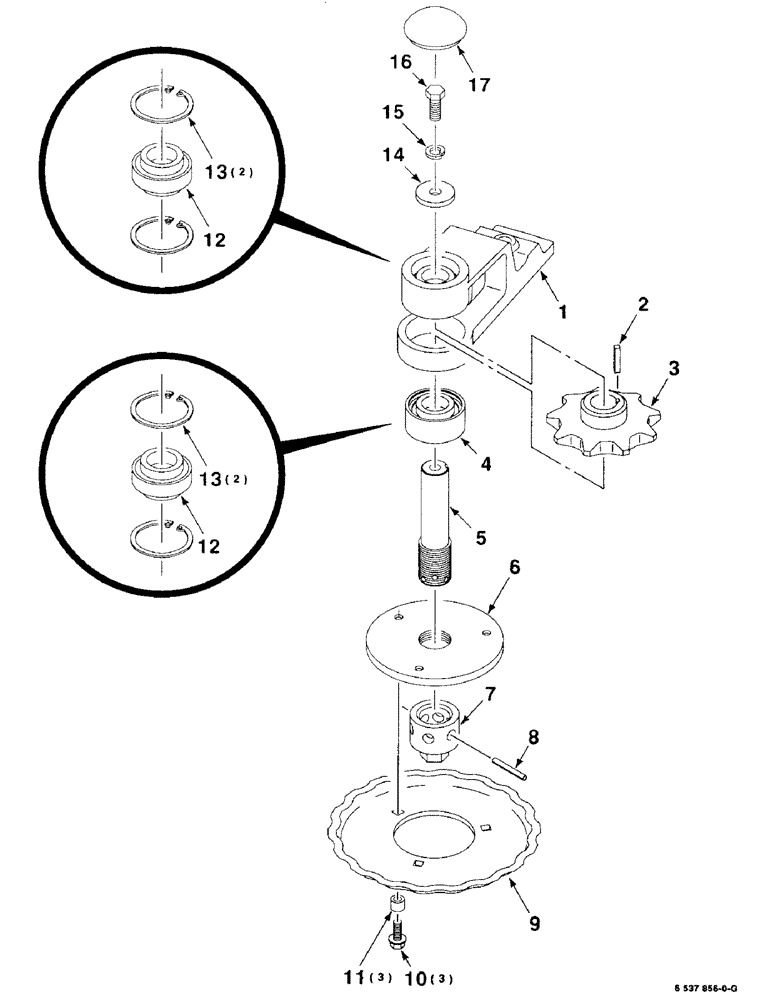

Запчасти Case IH 8725 (03-06) - SPINDLE ASSEMBLY, OUTER, LEFT (09) - CHASSIS

1

6534333

BEARING ASSY

MOUNT - bearing (includes items 12 & 13)

1шт.

2

61713

KEY

1/4 X 1/4 X 1-3/8 STRAIGHT KEY

1шт.

3

850206

DRIVE SPROCKET

SPROCKET

1шт.

4

6534358

BEARING ASSY

ASM. (includes items 12 & 13)

1шт.

5

6535157

SHAFT

- left hand thread

1шт.

6

6535140

LARGE PLATE

PLATE - left hand thread

1шт.

7

6535165

NUT

NUT WA - left hand thread

1шт.

8

38-11632

LOCK PIN,1/4" x 2", Slotted

PIN, LOCK, 1/4" x 2", Slotted

1шт.

9

748236

DISC

- cutoff

1шт.

10

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

3шт.

11

442178

BUSHING

3шт.

12

563883R91

BALL BEARING,31.75mm ID x 62mm OD x 16mm W

BEARING - cylinder

2шт.

13

52035

RING, SNAP

RING - retaining

4шт.

14

282269

WASHER

1шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

16

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

17

518842R1

CAP

- hub

1шт.
