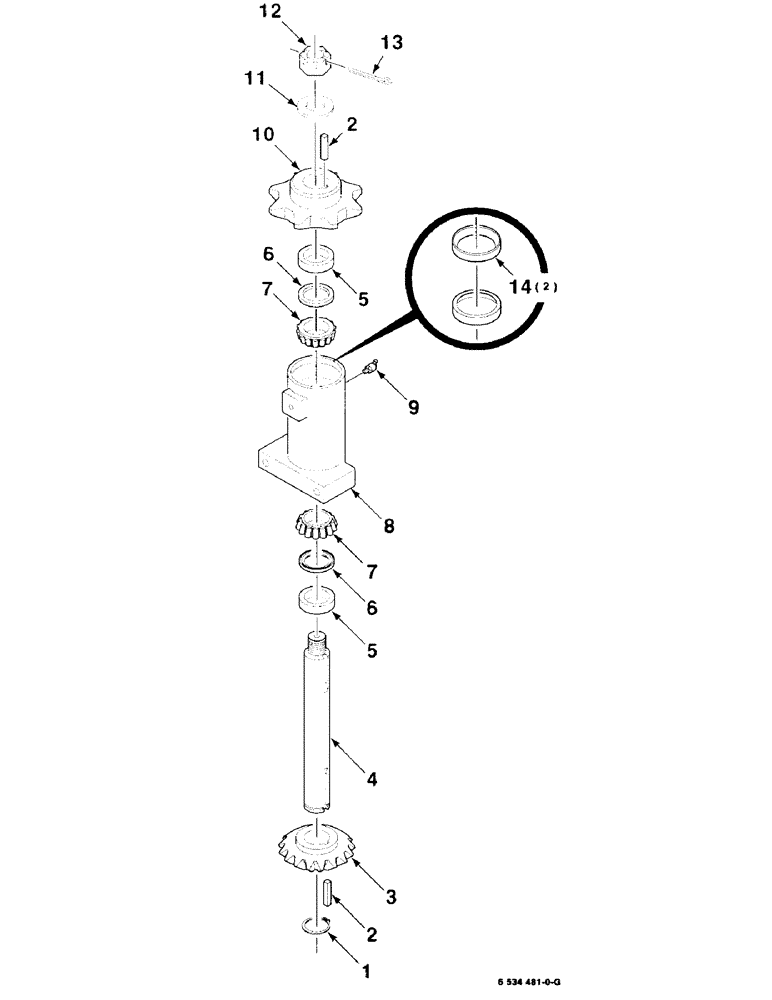

Запчасти Case IH 8725 (03-04) - DRIVE ASSEMBLY (09) - CHASSIS

1

103-16125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

1шт.

2

61713

KEY

1/4 X 1/4 X 1-3/8 STRAIGHT KEY

2шт.

3

7893480

GEAR, BEVEL

GEAR - bevel

1шт.

4

6534499

SHAFT

1шт.

5

6458160

SPACER

2шт.

6

844993

OIL SEAL

2шт.

7

711507

ROLLER BEARING,31.77 mm ID x 16.764 mm

CONE - bearing

2шт.

8

6182232

BEARING ASSY

HOUSING ASSEMBLY (includes item 14)

1шт.

9

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

ZERK

1шт.

10

849851

DRIVE SPROCKET

SPROCKET

1шт.

11

495-11094

WASHER,7/8", SAE

7/8 NARROW PLAIN WASHER

1шт.

12

7774607

JAM NUT

7/8-14 HEX CASTLE NUT

1шт.

13

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

1шт.

14

651817R1

BEARING CUP

CUP - bearing

2шт.
