Запчасти Case IH HDX20P (20.03) - PICK-UP, DRIVE (58) - ATTACHMENTS/HEADERS

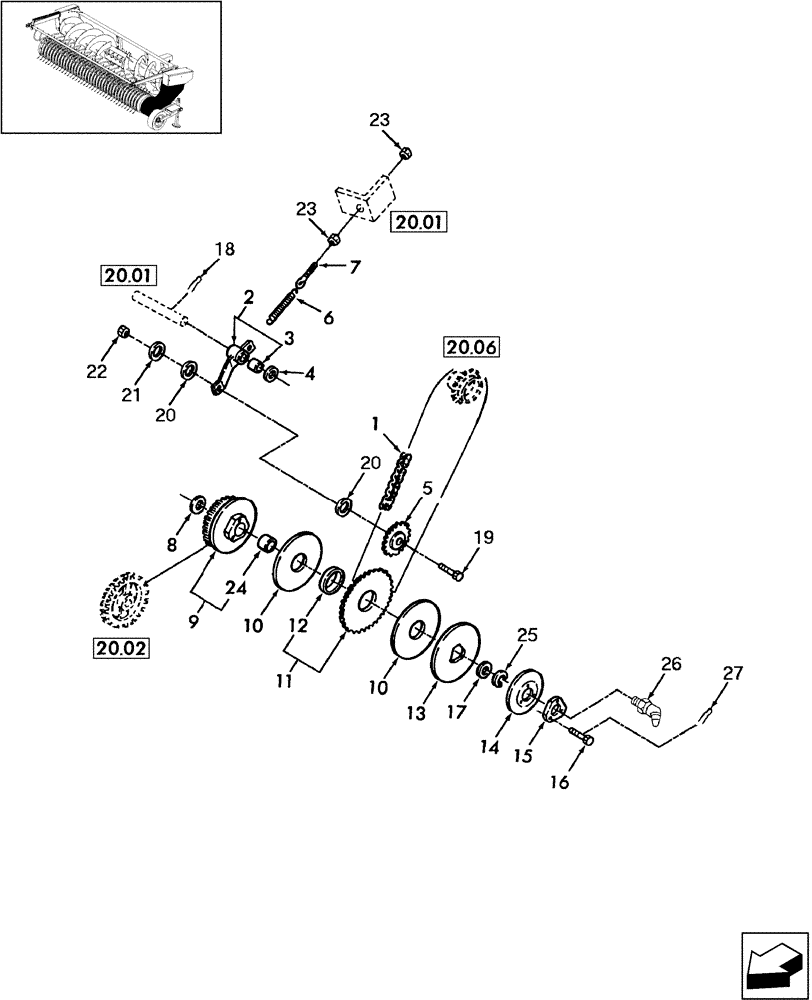

Схема запчастей Case IH HDX20P - (20.03) - PICK-UP, DRIVE (58) - ATTACHMENTS/HEADERS
15
25
1
13
3
16
12
4
20
8
24
7
27
5
21
9
23
22
17
26
14
6
23
10
18
10
2
11
19
20

Артикул

Название

Примечание

Количество

1

693515

CHAIN

Roller, CA2050, 68 Pitches, HDX10P, Includes: Ref. 28

1шт.

1

86627128

CHAIN

Roller, #60, 116 Pitches, HDX20P, Includes: Ref. 28

1шт.

2

86627503

HUB

Arm, Idler

1шт.

3

616720

DRIVE BUSHING,25.88mm ID x 31.89mm OD x 36.51mm L

1шт.

4

27531

WASHER

1.03" ID x 1-3/4" OD x .060"

1шт.

5

103244

SPROCKET

Idler, HDX10P

1шт.

5

511265

SPROCKET

Idler, HDX20P

1шт.

6

34490

SPRING

1шт.

7

46041

EYEBOLT

3/8"-16 x 3-1/2"

1шт.

8

146258

WASHER,1 9/32" x 1 3/4" x 16 Ga.

1шт.

9

86620585

GEAR

20T, Drive, Non-Hardened

1шт.

Replaced with 86837949 & 86837950. Mixing BSN & ASN Gears Will Result in Premature Failure.

1шт.

Prior to P.I.N. HBJ0039561, HDX20P

1шт.

Prior to P.I.N. xxxxxxxxxx, HDX10P

1шт.

9

86837949

GEAR

20T, Drive, Hardened

1шт.

P.I.N. HBJ0039562 & After, HDX20P

1шт.

P.I.N. xxxxxxxxxx & After, HDX10P

1шт.

10

127434

DISC,77.7mm ID x 146mm OD x 3.56mm Thk

Friction

2шт.

11

138340

DRIVEN SPROCKET

38T, HDX10P

1шт.

Refer to Operator's Manual

1шт.

11

851338

DRIVEN SPROCKET

34T, Optional, HDX10P

1шт.

Refer to Operator's Manual

1шт.

11

86627671

DRIVEN SPROCKET

24T

1шт.

Refer to Operator's Manual

1шт.

11

86570460

DRIVEN SPROCKET

34T, HDX20P

1шт.

Refer to Operator's Manual

1шт.

11

86570538

DRIVEN SPROCKET

29T, Optional, HDX20P

1шт.

Refer to Operator's Manual

1шт.

11

86570540

DRIVEN SPROCKET

38T, Optional

1шт.

Refer to Operator's Manual

1шт.

11

86570542

DRIVEN SPROCKET

40T, Optional, HDX20P

1шт.

Refer to Operator's Manual

1шт.

12

49686

BUSHING,76mm ID x 82.68mm OD x 7.62mm L

1шт.

13

86627129

CLUTCH PLATE

1шт.

14

121092

BELLEVILLE WASHER,35mm ID x 117.5mm OD x 3.5mm Thk

1шт.

15

86636168

BRACKET

1шт.

16

86627127

BOLT,Spcl, Hex, 3/8" - 16 x 1.25", Gr 5

3шт.

17

86634532

WASHER,31.96mm ID x 44.5mm OD x 1.9mm Thk

1шт.

18

432-1228

COTTER PIN,3/16" x 1 3/4"

1шт.

19

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

20

495-21019

WASHER,#8

1шт.

21

492-11062

BEARING WASHER,5/8"

1шт.

22

425-1010

NUT,5/8"-11, G5

1шт.

23

425-106

NUT,3/8"-16, Cl 5

2шт.

24

719092

BUSHING,31.77mm ID x 34.9mm OD x 25.4mm L

1шт.

25

100-16125

SNAP RING,#125, Ext

1шт.

26

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

27

81860

COTTER PIN,1/16" x 1"

3шт.

28

86977795

CONNECTING LINK

1шт.

Not Illustrated

1шт.

Выбрано товаров: 50
