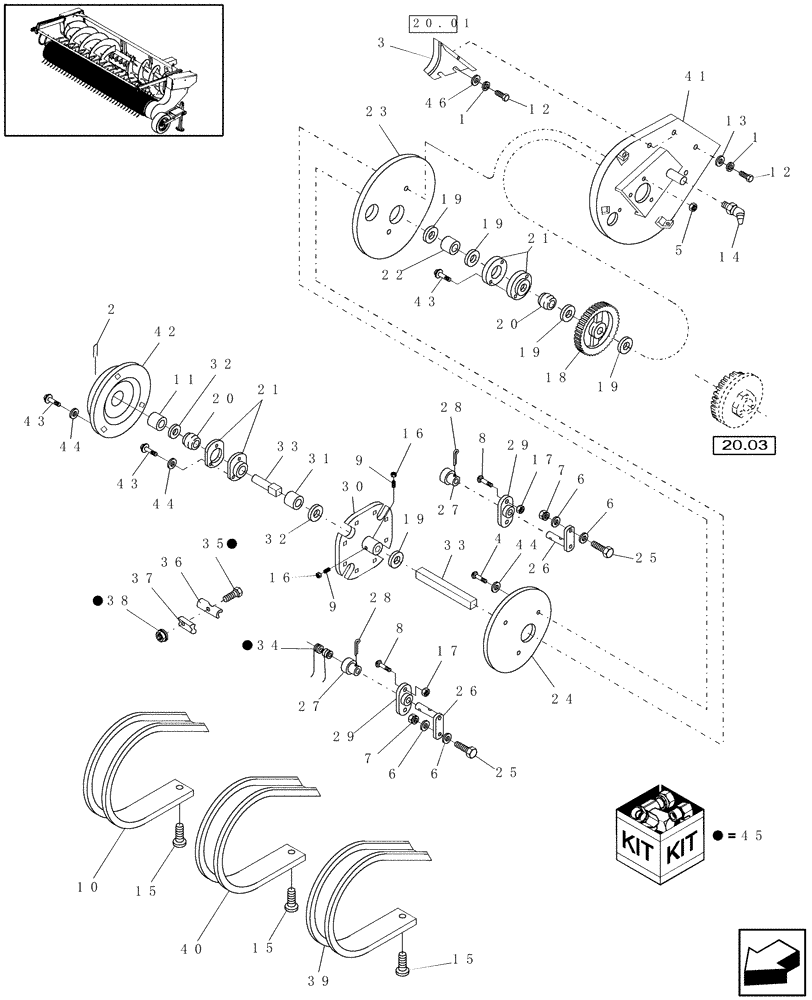

Запчасти Case IH HDX20P (20.02) - PICK-UP, REEL (58) - ATTACHMENTS/HEADERS

1

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

2

432-1228

COTTER PIN,3/16" x 1 3/4"

HDX10P

2шт.

2

164086

COTTER PIN

Hardened, 9/64" x 1-1/2", HDX20P

2шт.

3

86624636

SHIELD

1шт.

4

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

1шт.

4

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

1шт.

5

425-286

FLANGE NUT,Flg, 3/8"-16, G5

3шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

6

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

8шт.

7

88130

NUT,1/2"-20, GC

4шт.

8

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

HDX10P (24), HDX20P (32)

1шт.

9

485-13812

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

HDX10P (6), HDX20P (8)

1шт.

10

86625271

GUARD

Double Pickup

1шт.

10

86625290

GUARD

Pickup, Outside, HDX20P Only

1шт.

11

86627666

SPACER

HDX10P Only

1шт.

12

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

6шт.

13

495-21056

WASHER,1/2"

1шт.

13

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

17/32" ID x 2" OD x 3/16" Thk

1шт.

14

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

15

87346

SELF-TAP SCREW,Hex Hd, 5/16" x 1/2"

(124) HDX10P, (148) HDX20P

1шт.

16

425-146

JAM NUT,3/8" - 16, Gr 5

HDX10 (6), HDX20P (8)

1шт.

17

232-4146

NUT,3/8"-16, GC

HDX10P (24), HDX20P (32)

1шт.

18

86605389

GEAR

25T, Drive, Non-Hardened

1шт.

Replaced with 86837949 & 86837950. Mixing BSN & ASN Gears Will Result in Premature Failure.

1шт.

Prior to P.I.N. HBJ0039561, HDX20P

1шт.

Prior to P.I.N. xxxxxxxxxx, HDX10P

1шт.

18

86837950

GEAR

25T, Drive, Hardened

1шт.

P.I.N. HBJ0039562 & After, HDX20P

1шт.

P.I.N. xxxxxxxxxx & After, HDX10P

1шт.

19

130357

WASHER,35.3mm ID x 60.3mm OD x 1.52 Thk

1-3/8"

1шт.

20

121602

BALL BEARING,28.6mm Hex x 72mm OD x 37.7mm W

2шт.

21

86620026

FLANGED BEARING

4шт.

22

86627656

SPACER

HDX10P

1шт.

22

86575691

SPACER

HDX20P

1шт.

23

86627502

CAM

Outer

1шт.

24

86627501

CAM

Inner

1шт.

25

86536275

CAM FOLLOWER

4шт.

26

86627663

PIPE

Tooth, HDX10P

4шт.

26

86627518

TUBE

Pipe Tooth, HDX20P

4шт.

27

54770

BALL BEARING,27.33 mm ID x 47.092 mm OD x 25.4 mm

HDX10P (12), HDX20P (16)

1шт.

28

136521

COTTER PIN,5.7mm OD x 44.45mm L

Hardened, HDX10P (12), HDX20P (16)

1шт.

29

54695

BEARING HOUSING

HDX10P (12), HDX20P (16)

1шт.

30

86627506

DISC

HDX10P (3), HDX20P (4)

1шт.

31

130357

WASHER,35.3mm ID x 60.3mm OD x 1.52 Thk

1-3/8", HDX10P (14), HDX20P (16)

1шт.

31

86575691

SPACER

HDX20P Only

1шт.

32

50613

WASHER

1шт.

33

86627662

SHAFT

HDX10P

1шт.

33

86566380

SHAFT

HDX20P

1шт.

34

87394242

TORSION SPRING,Coiled, 2 Prong, 186.5mm L

Pickup, HDX10P

60шт.

34

9847572

TINE,2 Prongs, 96.52mm L

Rubber Mounted, HDX20P

72шт.

35

130891

BOLT,Tine, 5/16" - 18 x 2"

Special, Pickup Finger, HDX10P

60шт.

35

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

HDX20P

72шт.

36

134921

BRACKET

Pickup Tooth, HDX10P Only

60шт.

37

86627654

TINE BAR

Pickup Tooth, HDX10P Only

60шт.

38

280736

NUT,5/16"-18, GC

HDX10P (60), HDX20P (72)

1шт.

39

86625271

GUARD

Double Pickup, HDX10P (2), HDX20P (1)

1шт.

40

86625273

GUARD

Pickup, HDX10P (29), HDX20P (35)

1шт.

41

86627521

COVER

End, LH

1шт.

42

86624679

CAP

1шт.

43

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

9шт.

44

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

9шт.

45

86620346

TINE

Set, 12 Pc. HDX20P, Includes Items 34, 35 & 38

1шт.

46

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

17/32" ID x 2" OD x 3/16" Thk

2шт.
