Запчасти Case IH HDX20P (20.08) - ROLLER MOUNT & GAUGE WHEEL (58) - ATTACHMENTS/HEADERS

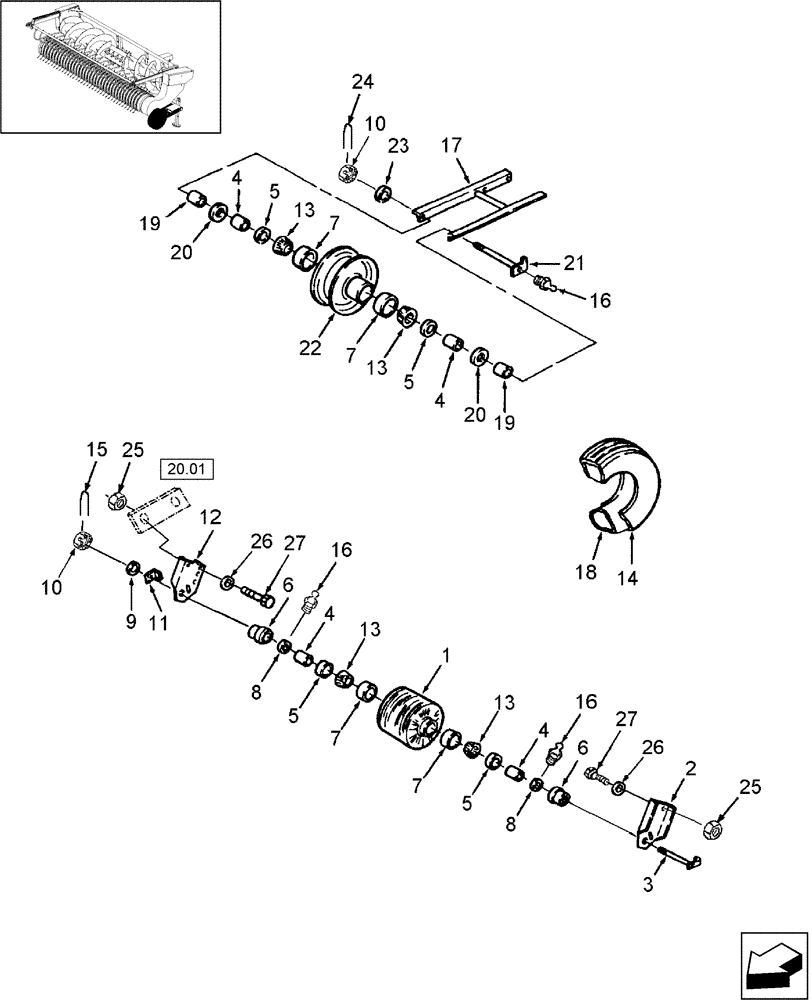

Схема запчастей Case IH HDX20P - (20.08) - ROLLER MOUNT & GAUGE WHEEL (58) - ATTACHMENTS/HEADERS
20
10
18
5
24
21
3
26
16
20
7
16
7
6
1
4
11
13
25
4
27
5
5
19
6
17
9
2
8
1
5
10
12
4
7
7
4
23
26
13
14
13
19
27
8
25
22
13
15

Артикул

Название

Примечание

Количество

1

762422

ROLLER

Wheel

1шт.

2

86624658

MOUNTING PARTS

Bearing, LH

1шт.

3

80772352

SPINDLE

1шт.

4

612121

SPACER

4шт.

5

136376

SEAL,31.75mm ID x 50.42mm OD x 6.75mm Thk

4шт.

6

86624662

HUB

2шт.

7

572564R1

BEARING CUP

1.98", Use W/ Ref. 13

4шт.

8

245532

WASHER,25.53mm ID x 31.24mm OD x 0.38mm Thk

1" ID x 1-1/4" OD x .015"

1шт.

9

26129

WASHER,25.8mm ID x 39.69mm OD x 0.99mm Thk

(1-1/64" ID x 1-9/16" OD x 0.036")

1шт.

10

603373

JAM NUT,Slotted, 1" - 14, Gr 2

Jam, G2, 1"-14

2шт.

11

773052

ANGLE

Tab

1шт.

12

86624660

MOUNTING PARTS

Bearing, RH

1шт.

13

D29266

ROLLER BEARING,1" ID x 0.58"

1" ID

4шт.

14

NSS

NOT SOLD SEPARAT

Tire, 4-PLY, 4.00-8 Smooth Tread

1шт.

15

432-1224

COTTER PIN,3/16" x 1-1/2"

1шт.

16

219-87

LUBE NIPPLE,1/4" - 28 NPTF

3шт.

17

86624675

ANGLE

1шт.

18

25447

TIRE TUBE

Inner, 4.00 - 8

1шт.

19

76165

HUB

2шт.

20

612120

COVER

2шт.

21

289668

SHAFT

1шт.

22

86616348

WHEEL

1шт.

23

26402

WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk

(.060" Thk, 1-1/2" OD)

1шт.

24

432-1228

COTTER PIN,3/16" x 1 3/4"

1шт.

25

425-108

NUT,1/2" - 13, Gr 5

4шт.

26

495-21050

WASHER,7/16"

HDX10P Standard Only

4шт.

27

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

28

603373

JAM NUT,Slotted, 1" - 14, Gr 2

Jam, G2, 1"-14

1шт.

Выбрано товаров: 28
