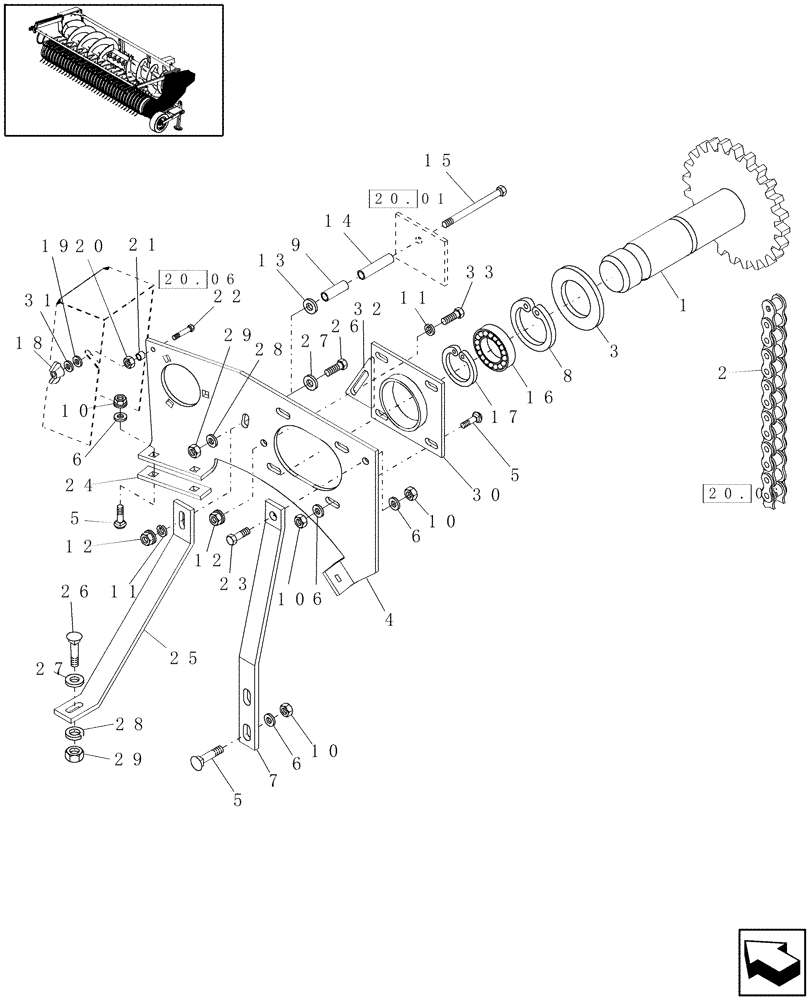

Запчасти Case IH HDX20P (20.07) - JACKSHAFT (58) - ATTACHMENTS/HEADERS

1

86625292

SHAFT

1шт.

2

135781

CHAIN

Roller, 52 Pitch/51 Links, HDX10P/HDX20P

1шт.

3

164999

WASHER

1шт.

4

86625282

BRACKET

1шт.

5

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

9шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

10шт.

7

86625309

BRACE

HDX10P

1шт.

8

46809

SNAP RING

Retaining, Int, M71.83 x 1.588 Thk

1шт.

9

32318

BUSHING,11.94mm ID x 17.27mm OD x 50.8mm L

HDX10P

1шт.

10

425-286

FLANGE NUT,Flg, 3/8"-16, G5

10шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

12

425-286

FLANGE NUT,Flg, 3/8"-16, G5

2шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

HDX10P

1шт.

14

56435

SPACER

Split, HDX10P

1шт.

15

413-696

BOLT,Hex, 3/8" - 16 x 6", Gr 5

HDX10P

1шт.

16

84438926

BALL BEARING,35mm ID x 72mm OD x 17mm W

2шт.

17

46810

SNAP RING,Ext, 1.288"

1шт.

18

425-104

NUT,1/4"-20, Cl 5

1шт.

18

129-409

WING NUT,1/4"-20

1шт.

19

495-21031

WASHER,1/4"

2шт.

20

425-104

NUT,1/4"-20, Cl 5

1шт.

21

86556822

SPACER,6.48mm ID x 12.83mm OD x 12.7mm L

1шт.

22

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

23

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

1шт.

24

86595703

SHIM

HDX10P

1шт.

24

86595703

SHIM

HDX20P

3шт.

24

86594332

SHIM

HDX20P

1шт.

25

86625280

BRACE

HDX20P

1шт.

26

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

HDX20P

2шт.

27

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

28

492-11038

LOCK WASHER,3/8"

HDX20P

2шт.

29

425-286

FLANGE NUT,Flg, 3/8"-16, G5

2шт.

30

86627514

HUB

1шт.

31

492-11025

LOCK WASHER,1/4"

1шт.

32

86627522

BRACKET

Flat

1шт.

33

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

1шт.
