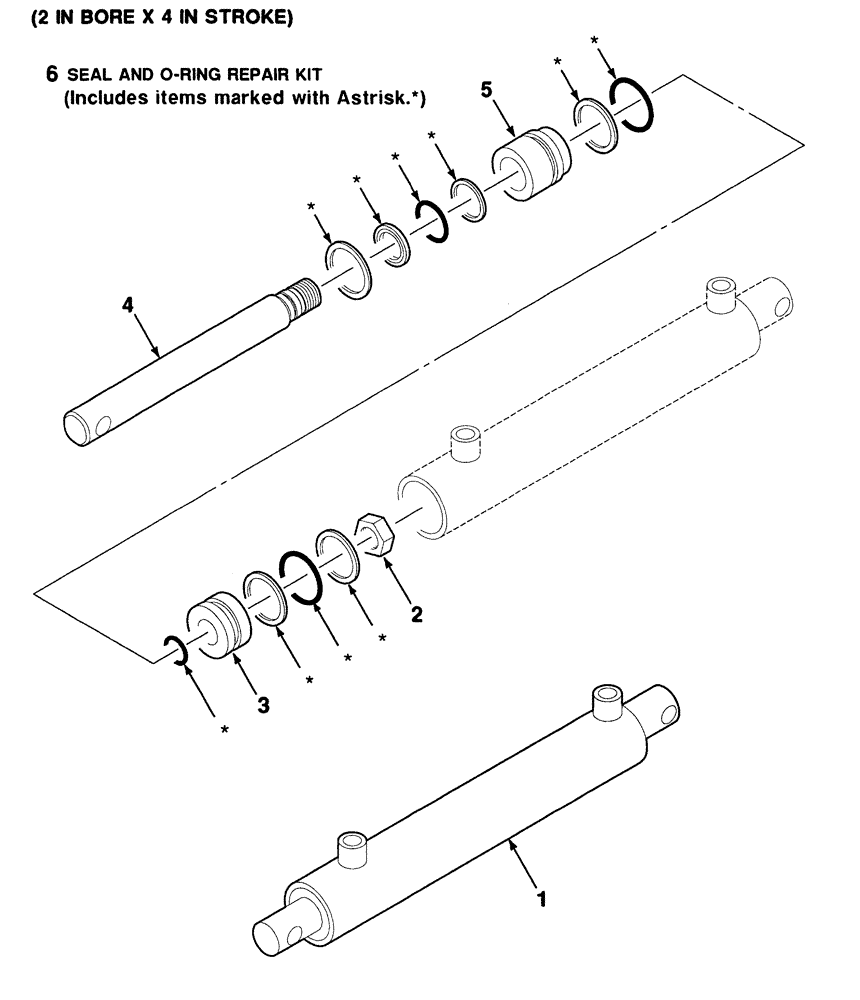

Запчасти Case IH 8880 (8-12) - HYDRAULIC CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

700711910

CYLINDER ASSY.

hydraulic complete (2 in bore x 4 in stroke)

1шт.

2

700707418

JAM NUT

7/8-14 UNF HJN

1шт.

3

700707419

PISTON

1шт.

4

700711955

PISTON ROD

1шт.

5

700711112

GUIDE

rod

1шт.

6

700711114

SEAL KIT

seal and o-ring repair kit, Includes items in art marked with an asterisk

1шт.
