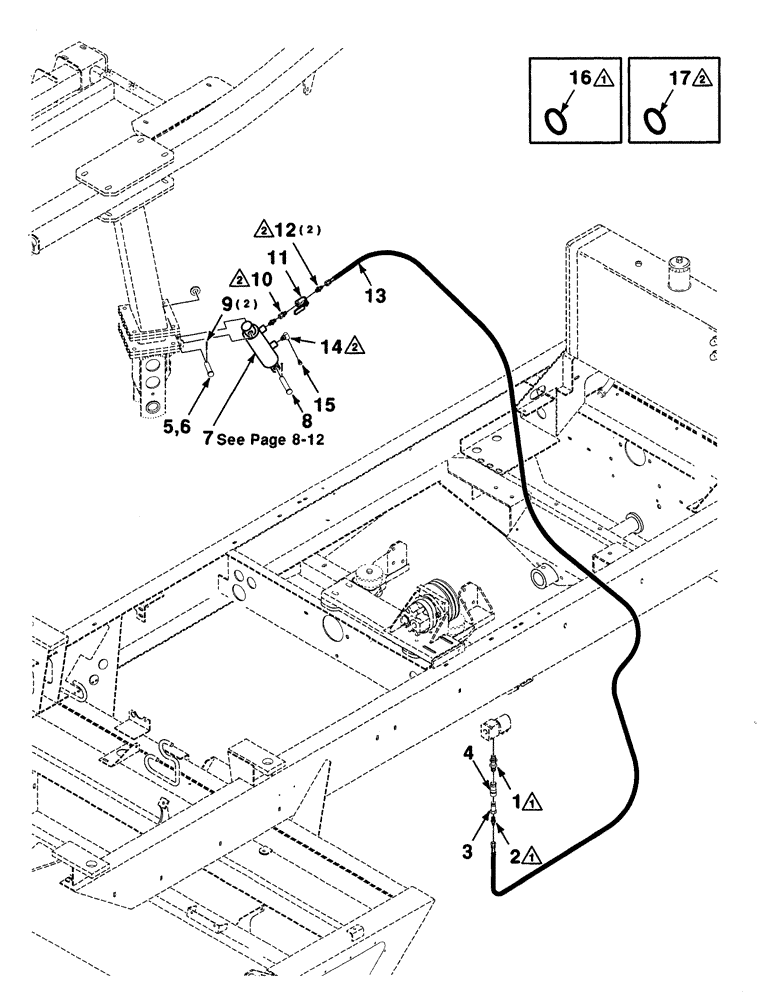

Запчасти Case IH 8880 (8-10) - CONVEYOR HYDRAULIC LIFT ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

700713197

FITTING

union (Includes item 16)

1шт.

2

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

fitting hydraulic (Includes item 16)

1шт.

3

700716552

PIPE

male

1шт.

4

385357A1

COUPLING

female

1шт.

5

63495

CLIP

pin clevis, 5/8 x 2-1/2

1шт.

6

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

5/8" bolt size

1шт.

7

700711910

CYLINDER ASSY.

hydraulic

1шт.

8

863498

CLEVIS PIN

5/8 x 3-1/2

1шт.

9

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

2шт.

10

31-3087

FITTING

hydraulic (Includes item 17)

1шт.

11

700716971

SHUT-OFF VALVE

1шт.

12

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

(Incl. item 17)

2шт.

13

700709249

HYDRAULIC HOSE,6.35 mm ID x 650.00 mm, SAE 100R1

1шт.

14

7791916

ELBOW

90° (Includes item 17)

1шт.

15

700704639

PLUG

vented

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

738468

O-RING

1шт.
