(8-06) - HYDRAULIC VALVE ASSEMBLY (FLOW CONTROL)

Запчасти Case IH 8880 (8-06) - HYDRAULIC VALVE ASSEMBLY (FLOW CONTROL) (35) - HYDRAULIC SYSTEMS

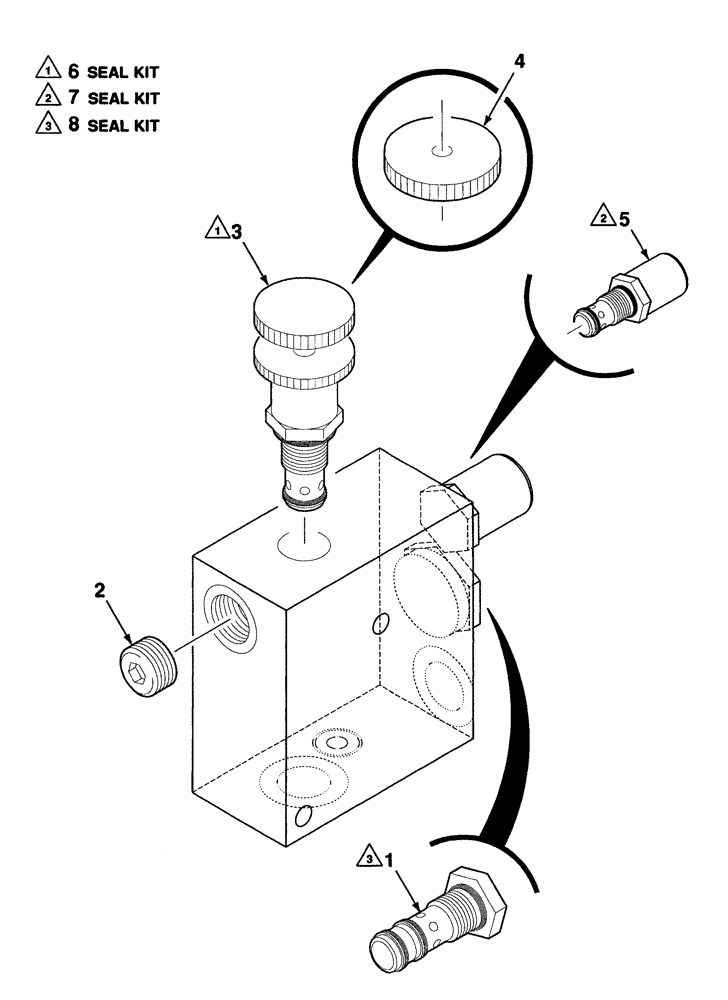

Схема запчастей Case IH 8880 - (8-06) - HYDRAULIC VALVE ASSEMBLY (FLOW CONTROL) (35) - HYDRAULIC SYSTEMS
4
6
3
7
8
5
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700718851

VALVE

HYDRAULIC ASSEMBLY complete

1шт.

1

700719199

VALVE

compensator pressure (Includes item 8)

1шт.

2

700719201

PLUG

orifice

1шт.

3

700719648

VALVE

needle (Includes items 4 and 6)

1шт.

4

700719657

KNOB

1шт.

5

700719200

VALVE

relief (Includes item 7)

1шт.

6

700715929

SEAL KIT

KIT

1шт.

7

700719220

KIT

seal

1шт.

8

700719151

KIT

seal

1шт.
