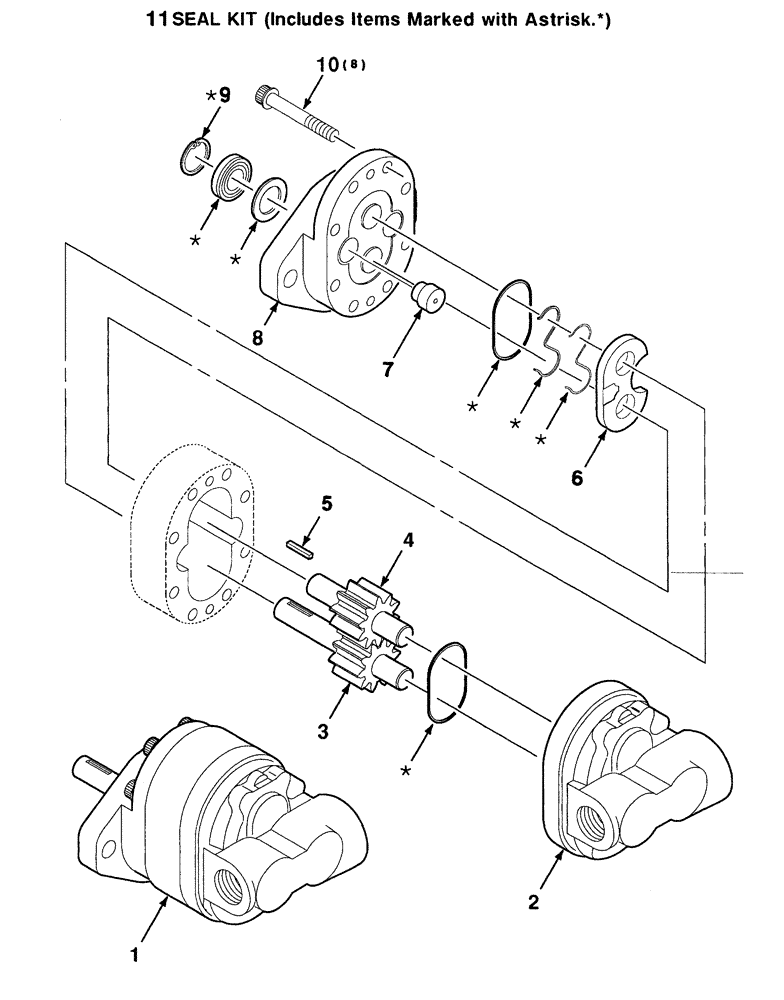

Запчасти Case IH 8880 (8-04) - HYDRAULIC MOTOR ASSEMBLY (DRIVE) (35) - HYDRAULIC SYSTEMS

1

700719417

MOTOR

HYDRAULIC ASSEMBLY complete

1шт.

2

700719760

PLATE

back

1шт.

3

700719761

GEAR

drive

1шт.

4

700717602

GEAR, IDLER

GEAR,IDLE

1шт.

5

700709497

KEY

1шт.

6

700717604

PLATE

wear

1шт.

7

291743A1

PLUG

1шт.

8

291734A1

PLATE

front

1шт.

9

100-21137

SNAP RING,1.375", Int, #137

1шт.

10

166-35

12 PT SCREW,Flg, 5/16" - 18 x 3 1/4", Gr 8

cap, 12 point

8шт.

11

233429A1

SEAL KIT

Includes all items in art marked with an asterisk

1шт.
