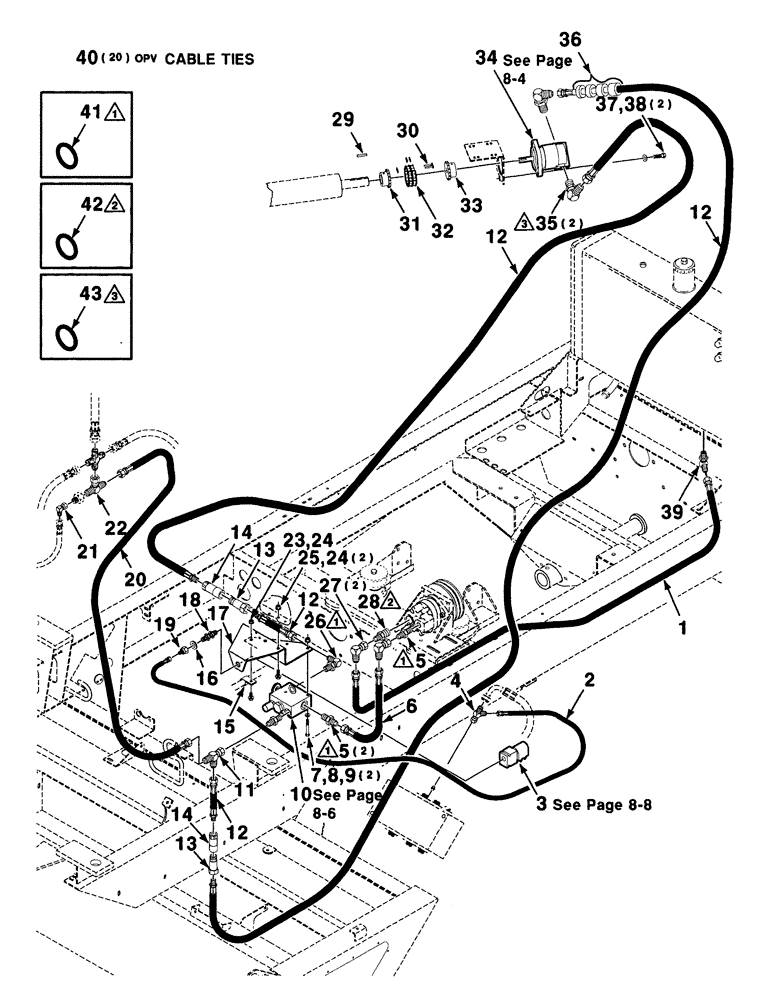

Запчасти Case IH 8880 (8-02) - CONVEYOR HYDRAULIC ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

700718829

HYDRAULIC HOSE,1.00" ID x 78.74", SAE 100R4, SAE J517, SAE J516, SAE J343

hydraulic

1шт.

2

1279526C1

HYDRAULIC HOSE,6.35 mm ID x 2285.00 mm

1шт.

3

700719355

VALVE

conveyor assembly

1шт.

4

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

Hydraulic

1шт.

5

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Hydraulic (Includes item 41)

3шт.

6

700716648

HYDRAULIC HOSE,0.75" ID x 29.13", SAE 100R1, SAE J517, SAE J516, SAE J343

hydraulic

1шт.

7

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

8

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

9

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.

10

700718851

VALVE

assembly, flow control

1шт.

11

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

Hydraulic

1шт.

12

700718831

HYDRAULIC HOSE,0.63" ID x 19.69", SAE 100R1, SAE J517, SAE J516, SAE J343

hydraulic

4шт.

13

700719347

COUPLING

nipple quick

2шт.

14

700719346

COUPLING

quick

2шт.

15

515-23254

CLAMP,1", Insul, 3/8" Bolt

Hose

1шт.

16

705566

WASHER

plain, hardened 3/4

1шт.

17

700151856

SUPPORT

1шт.

18

700717190

ADAPTER

bulkhead

1шт.

19

8046708

FITTING

reducer

1шт.

20

700718830

HYDRAULIC HOSE,0.75" ID x 24.02", SAE 100R3, SAE J517, SAE J516, SAE J343

hydraulic

1шт.

21

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

22

218-837

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

hydraulic

1шт.

23

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

24

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

3шт.

25

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

26

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

elbow 90° (Includes item 41)

1шт.

27

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

2шт.

28

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING hydraulic (Incl. item 42)

1шт.

29

Q10

KEY,1/4" Sq x 1 3/8"

1/4 x 1/4 x 1-3/8

1шт.

30

7847304

CHAIN LINK

connector 40-2 roller chain

1шт.

31

700719444

SPROCKET ASSY.

coupling flex

1шт.

32

700719441

CHAIN (AG)

roller, double #40

1шт.

33

700719442

SPROCKET ASSY.

flex coupling

1шт.

34

700719417

MOTOR

assembly gear

1шт.

35

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

(Incl. item 43)

2шт.

36

7737869

COLLAR

kit

1шт.

37

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

7/16-14 x 1-1/2 C

2шт.

38

496-21047

WASHER

plain, hardened 7/16

2шт.

39

8046823

FITTING

ELBOW 45°

1шт.

40

306132C1

CABLE TIE,14.5" L

CABLE STRAP ties

20шт.

41

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

42

738476

O-RING

1шт.

43

738484

O-RING

1шт.
