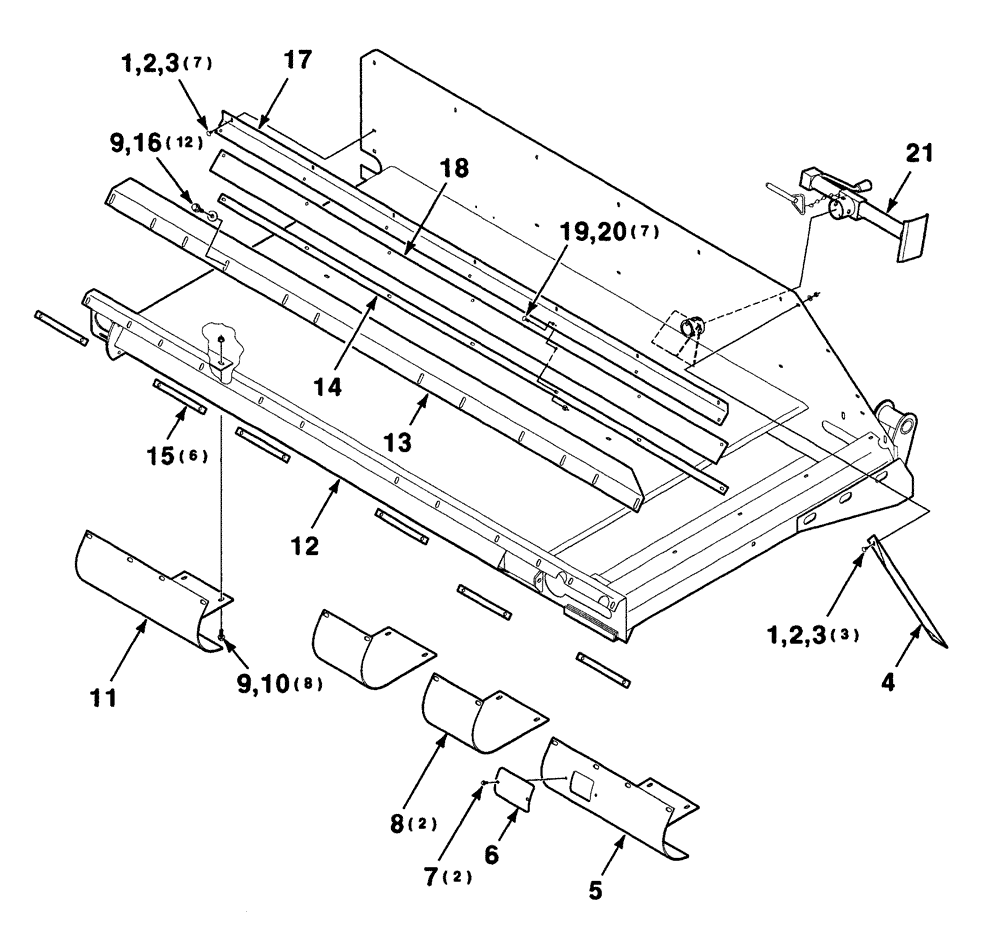

Запчасти Case IH 8880 (7-06) - CONVEYOR SHIELDS ASSEMBLY (FRONT) (58) - ATTACHMENTS/HEADERS

1

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

1/4-20 x 1/2 RHSNB

10шт.

2

496-11028

WASHER,9/32" x 5/8" x .065, HDN

plain, hardened 1/4

10шт.

3

425-104

NUT,1/4"-20, Cl 5

10шт.

4

700151736

SHIELD

rear-side

1шт.

5

700154655

PLATE

skid WA

1шт.

6

700154657

PLATE

cover

1шт.

7

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

8

700151812

PLATE

skid

2шт.

9

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

20шт.

10

231-5146

FLANGE NUT,3/8"-16

8шт.

11

700151776

PLATE

skid

1шт.

12

700154662

CONVEYOR

WA

1шт.

13

700151862

PANEL

SHINGLE front

1шт.

14

700158539

STRAP

1шт.

15

700154659

STRAP

WA

6шт.

16

496-81010

WASHER

plain, wide, hardened 3/8

12шт.

17

700158540

ANGLE

1шт.

18

700726700

STRAP

rubber

1шт.

19

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4-20 x 3/4 RHSNB

7шт.

20

1703354

NUT

1/4-20 HFTLN GR/G

7шт.

21

700709385

JACK

1шт.
