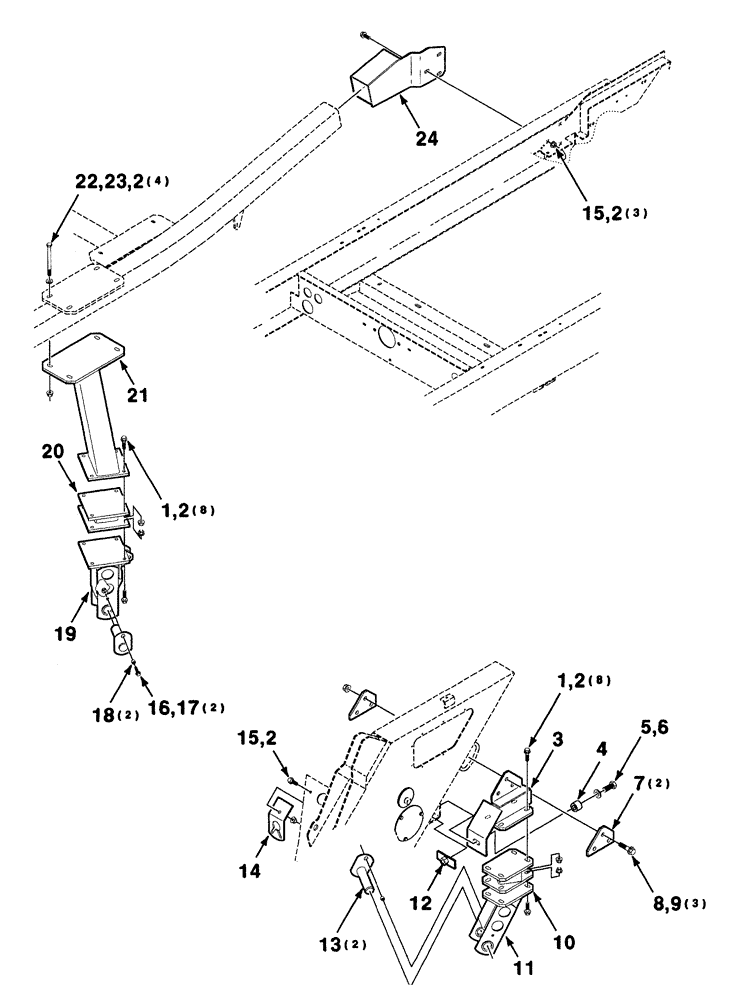

Запчасти Case IH 8880 (5-04) - DEFLECTOR AND CONVEYOR MOUNTING ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

160-109

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

1/2-13 x 1-3/4 HFS GR8

16шт.

2

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

24шт.

3

700151827

SUPPORT

WA left

1шт.

4

6136972

SPACER

1шт.

5

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

3/4-10 x 2-3/4 C

1шт.

6

705566

WASHER

plain, hardened 3/4

1шт.

7

700151839

PLATE

hanger

2шт.

8

360-1040

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

5/8-11 x 2-1/2 HFS GR8

3шт.

9

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

3шт.

10

700151797

SPACER

WA left

1шт.

11

700151834

PIVOT

WA left

1шт.

12

700151844

NUT

WA

1шт.

13

700151847

PIN ASSY.

WA

2шт.

14

700151818

HANGER

conveyor

1шт.

15

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

4шт.

16

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 x 1-1/4 HFS GR8

2шт.

17

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

18

700134351

SPACER

2шт.

19

700151819

PIVOT

WA right

1шт.

20

700151825

SPACER

WA right

1шт.

21

700151792

TUBE,466.5 mm Length

WA

1шт.

22

413-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

1/2-13 x 6 C

4шт.

23

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

plain, hardened 1/2

4шт.

24

700151826

SUPPORT

WA

1шт.
