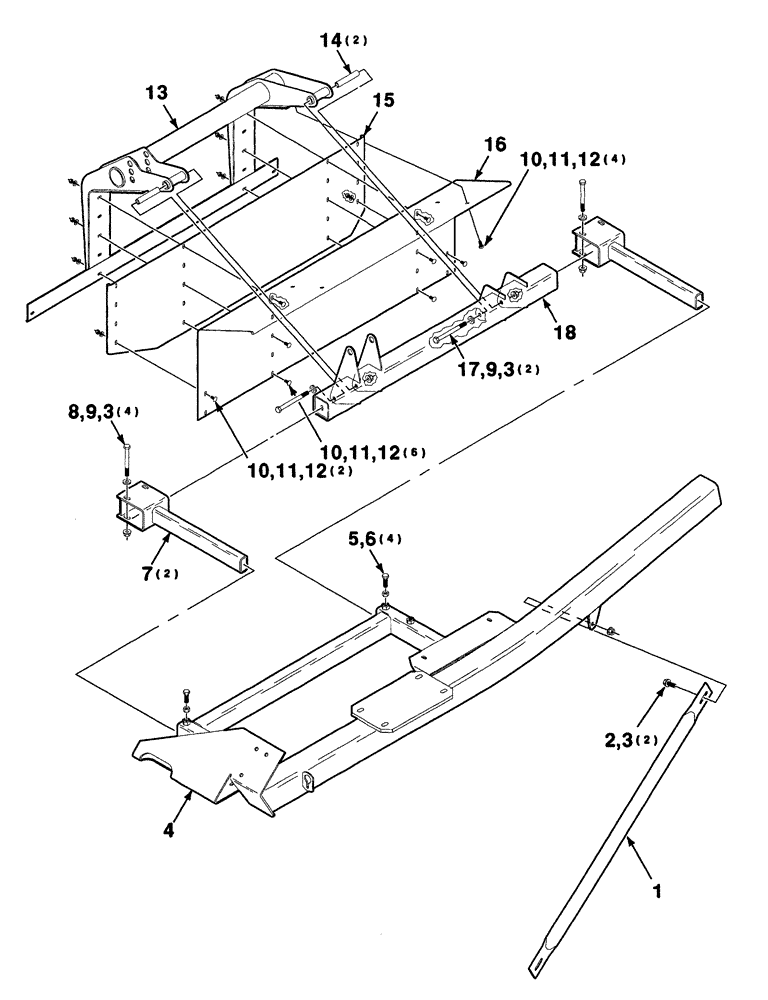

Запчасти Case IH 8880 (5-02) - DEFLECTOR ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

700151778

PIPE ASSY.

1шт.

2

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

2шт.

3

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

8шт.

4

700151780

SUPPORT

WA right

1шт.

5

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

6

425-108

NUT,1/2" - 13, Gr 5

4шт.

7

700151880

CHANNEL

WA extension

2шт.

8

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

1/2-13 x 4-1/2 C

4шт.

9

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

plain, hardened 1/2

6шт.

10

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

12шт.

11

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

12шт.

12

425-105

NUT,5/16"-18, G5

12шт.

13

700151885

SUPPORT

WA deflector

1шт.

14

700151805

BUSHING

deflector

2шт.

15

700151815

PANEL

deflector, lower

1шт.

16

700151814

PANEL

deflector, upper

1шт.

17

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

1/2-13 x 5-1/2 C

2шт.

18

700151876

TUBE

WA cross

1шт.
