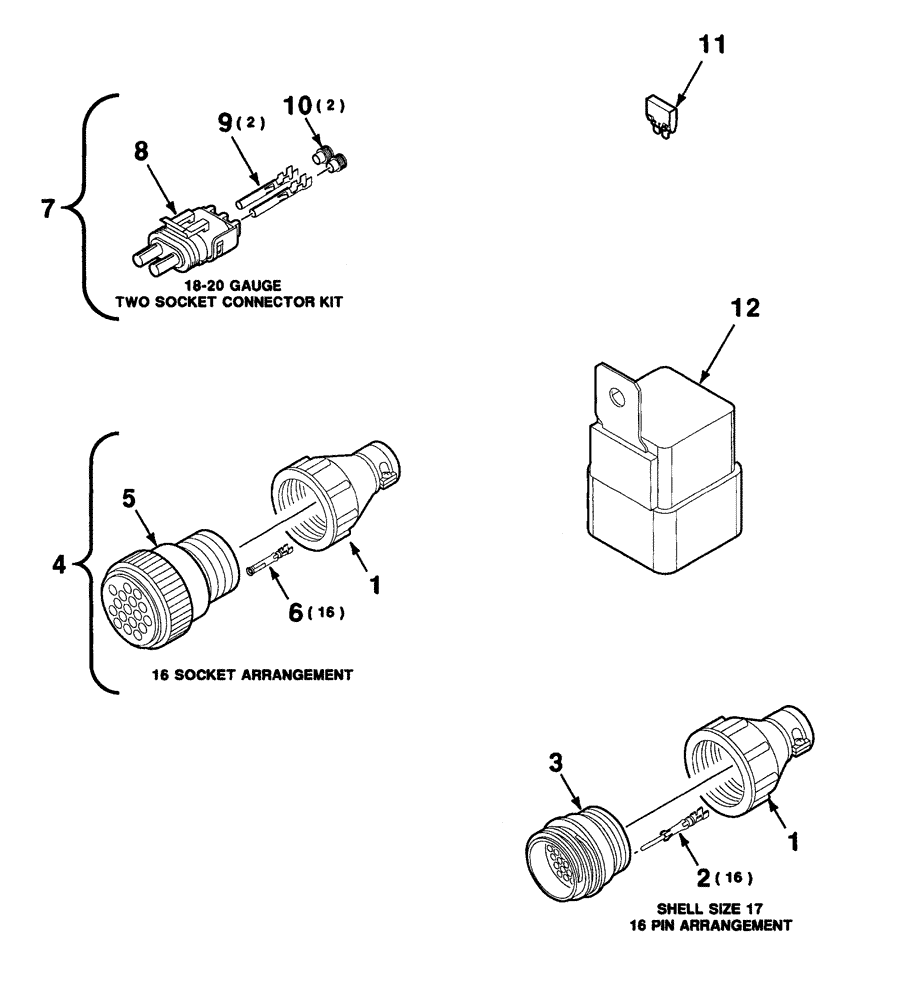

Запчасти Case IH 8880 (4-04) - ELECTRICAL HARNESS SERVICE PARTS (58) - ATTACHMENTS/HEADERS

1

225153C1

CONTACT HOUSING

clamp cable, shell size 17

1шт.

2

700708757

ELEC. TERMINAL PIN,18 - 16 SAE

type 3, male (16-18 gauge)

1шт.

3

700708754

CONTAINER

receptacle

1шт.

4

700718611

KIT

harness repair, female (16 socket) (Includes items 1, 5 and 6)

1шт.

5

225171C1

ELEC CONNECTOR,Female, 16 Pin

plug, female, (16 socket arrangement)

1шт.

6

700708758

TERMINAL

type 3, female, (16-18 gauge)

1шт.

7

700706999

REPAIR KIT

KIT harness repair, 2 socket, female, 18-20 gauge (Includes items 8, 9 and 10)

1шт.

8

245482C1

ELEC CONNECTOR,2 Pin

tower, 2 socket, female

1шт.

9

700708760

ELEC. TERMINAL PIN,18 - 20 SAE

socket female (18-20 gauge)

1шт.

10

700706400

PLUG

(18-20 gauge)

1шт.

11

A149801

FUSE,Lt Blue, 15 Amp

15 amp

1шт.

12

700715685

RELAY

1шт.
