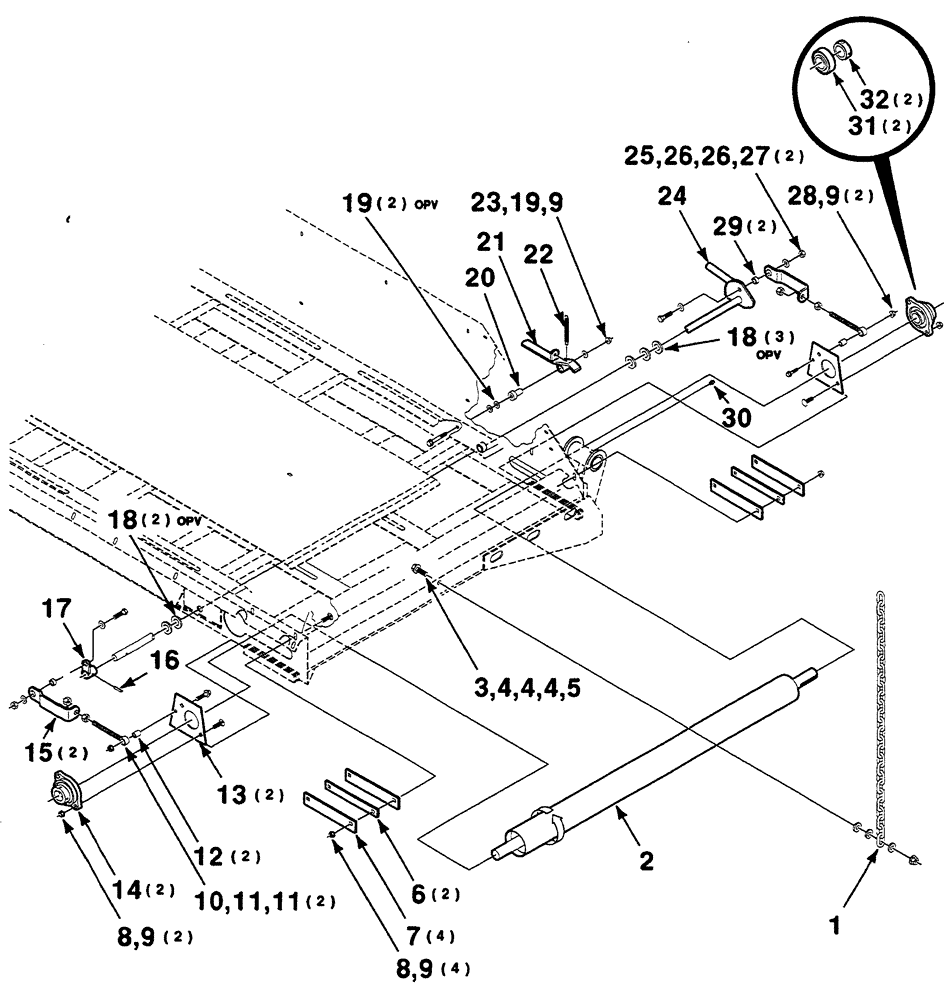

Запчасти Case IH 8880 (2-02A) - CONVEYOR ROLLER ASSEMBLY (LEFT) - DECEMBER 2000 AND BEFORE (58) - ATTACHMENTS/HEADERS

1

700719133

CHAIN (AG)

1шт.

2

700151764

ROLLER

ROLLER WA

1шт.

3

8701237

BOLT

1/2-13 x 1-1/2 HFS GR8

1шт.

4

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

3шт.

5

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

6

700151904

STRAP

2шт.

7

700151903

STRAP

4шт.

8

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

6шт.

9

329-286

FLANGE NUT,Flg, 3/8"-16, G8

9шт.

10

140319

BOLT,1/2" - 13 x 5"

BOLT, EYE

2шт.

11

425-108

NUT,1/2" - 13, Gr 5

4шт.

12

6812952

SPACER

BUSHING

2шт.

13

700151871

PLATE

PLATE, Bearing

2шт.

14

700719343

BEARING HOUSING,31.75 mm ID x 100 mm OD x 88.9 mm

Housed Unit (Includes 31 and 32)

2шт.

15

700151901

LINKAGE

2шт.

16

38-11616

LOCK PIN,1/4" x 1", Slotted

1шт.

17

6513139

TIGHTENER

1шт.

18

705566

WASHER

3/4 HARDENED PLAIN

5шт.

19

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3шт.

20

700151739

SPACER

1шт.

21

700151899

LATCH ASSY.

1шт.

22

700714166

SPRING

Extension

1шт.

23

7702079

SCREW

3/8-16 x 2-1/2 HFS GR8

1шт.

24

700151772

ROD

1шт.

25

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

2шт.

26

496-21047

WASHER

7/16 HARDENED PLAIN

4шт.

27

425-107

NUT,7/16"-14, G5

2шт.

28

700711084

BOLT

3/8-16 x 1-1/2 HFS GR8

2шт.

29

6520233

BUSHING

2шт.

30

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

31

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

2шт.

32

455104R11

COLLAR

LOCK

2шт.
