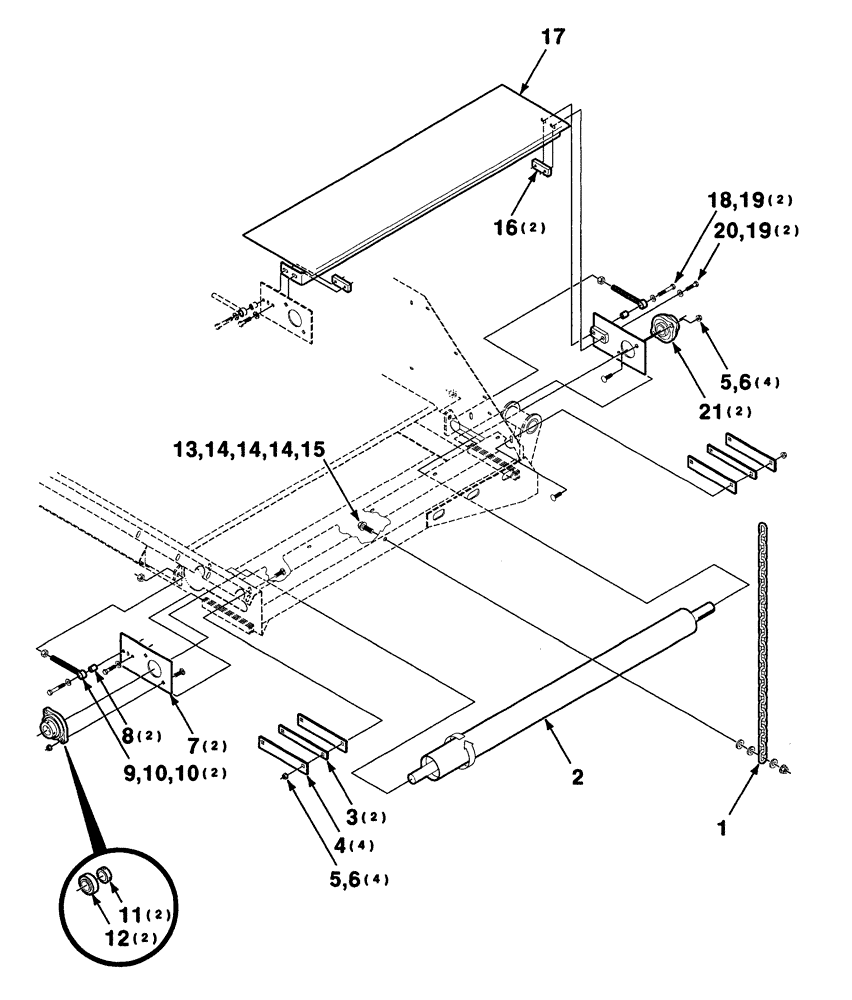

Запчасти Case IH 8880 (2-02) - CONVEYOR ROLLER ASSEMBLY (LEFT) - DECEMBER 2000 AND LATER (58) - ATTACHMENTS/HEADERS

1

700719133

CHAIN (AG)

1шт.

2

700151764

ROLLER

WA

1шт.

3

700151904

STRAP

2шт.

4

700151903

STRAP

4шт.

5

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

8шт.

6

329-286

FLANGE NUT,Flg, 3/8"-16, G8

8шт.

7

700154663

PLATE

WA-bearing

2шт.

8

6812952

SPACER

bushing

2шт.

9

140319

BOLT,1/2" - 13 x 5"

BOLT, EYE

2шт.

10

425-108

NUT,1/2" - 13, Gr 5

4шт.

11

455104R11

COLLAR

lock

2шт.

12

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

spherical

2шт.

13

8701237

BOLT

1/2-13 x 1-1/2 HFS GR8

1шт.

14

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

plain, hardened, 1/2

3шт.

15

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

1шт.

16

700154673

PLATE

2шт.

17

700158536

SCRAPER

WA

1шт.

18

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

19

496-11041

WASHER,13/32" x 13/16" x .065", HDN

plain, hardened 3/8

4шт.

20

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

21

700719343

BEARING HOUSING,31.75 mm ID x 100 mm OD x 88.9 mm

housed unit (Includes items 11 and12)

2шт.
