Запчасти Case IH 8880 (8-20) - HYDRAULIC PUMP CLUTCH AND MOUNTING ASSEMBLY (35) - HYDRAULIC SYSTEMS

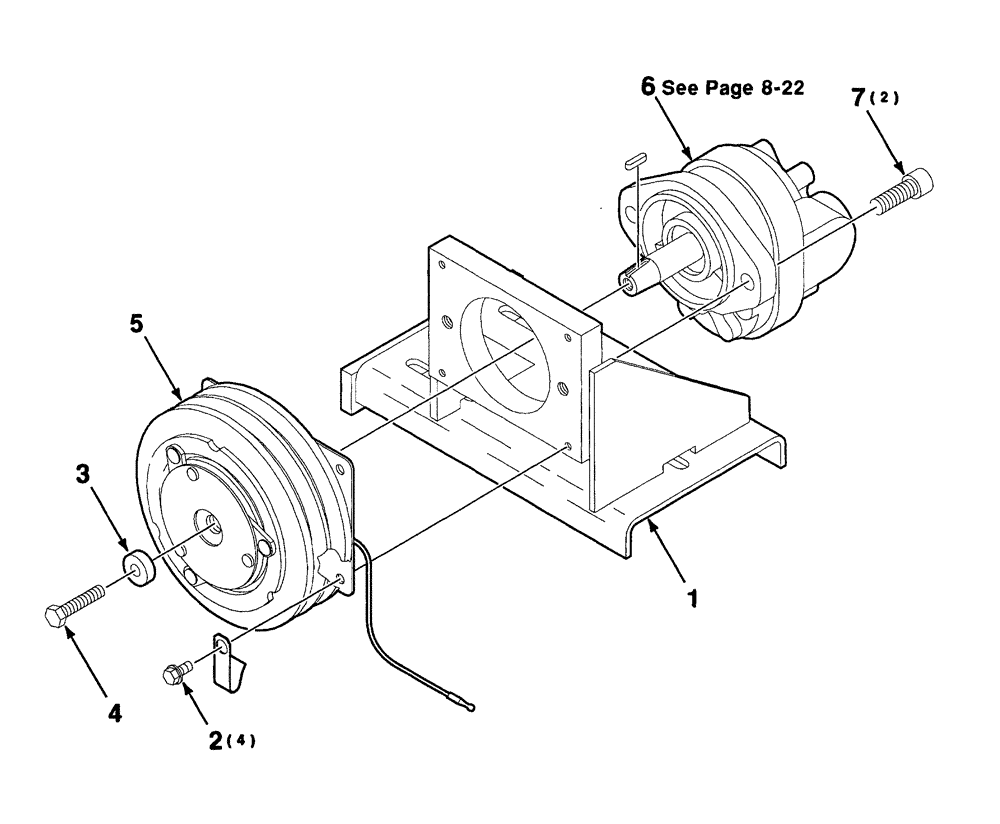

Схема запчастей Case IH 8880 - (8-20) - HYDRAULIC PUMP CLUTCH AND MOUNTING ASSEMBLY (35) - HYDRAULIC SYSTEMS
5
4
7
3
6
1
2

Артикул

Название

Примечание

Количество

1

700151884

MOUNTING PARTS

WA pump

1шт.

2

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

3

700150294

SPACER

plated

1шт.

4

700708080

BOLT,Spcl Hex, 5/16" - 24 x 1 1/2", Gr 8, Full Thd

5/16-24 x 1-1/2 FTC GR8

1шт.

5

700708485

CLUTCH

pump hydraulic

1шт.

6

700708493

HYDRAULIC PUMP

GEAR ASSEMBLY plain

1шт.

7

61-720

HEX SOC SCREW,7/16"-14 x 1 1/4"

7/16-14 x 1-1/4 HSHCS special

2шт.

Выбрано товаров: 7
