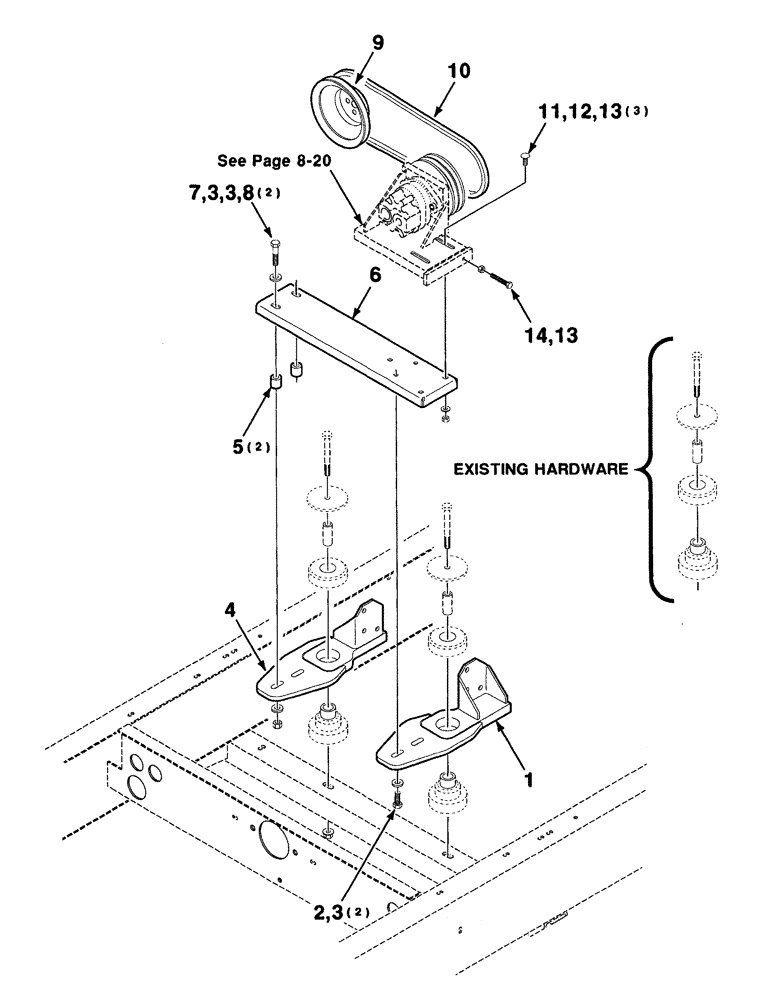

Запчасти Case IH 8880 (8-18) - HYDRAULIC PUMP MOUNTING ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

700151841

SUPPORT

WA left

1шт.

2

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

3

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

plain, hardened 1/2

6шт.

4

700151843

SUPPORT

WA right

1шт.

5

700116724

TUBE,13.68 mm ID, 25.4 mm OD, 25 mm Length

spacer

2шт.

6

700118857

ANGLE

channel WA

1шт.

7

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

8

425-108

NUT,1/2" - 13, Gr 5

2шт.

9

J903826

PULLEY,184.61mm OD

1шт.

10

235414A1

BELT,12.70 mm W x 901.70 mm L

1шт.

11

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3шт.

12

496-11041

WASHER,13/32" x 13/16" x .065", HDN

plain, hardened 3/8

3шт.

13

425-106

NUT,3/8"-16, Cl 5

4шт.

14

873133

BOLT

3/8-16 x 2-1/4 FTC

1шт.
