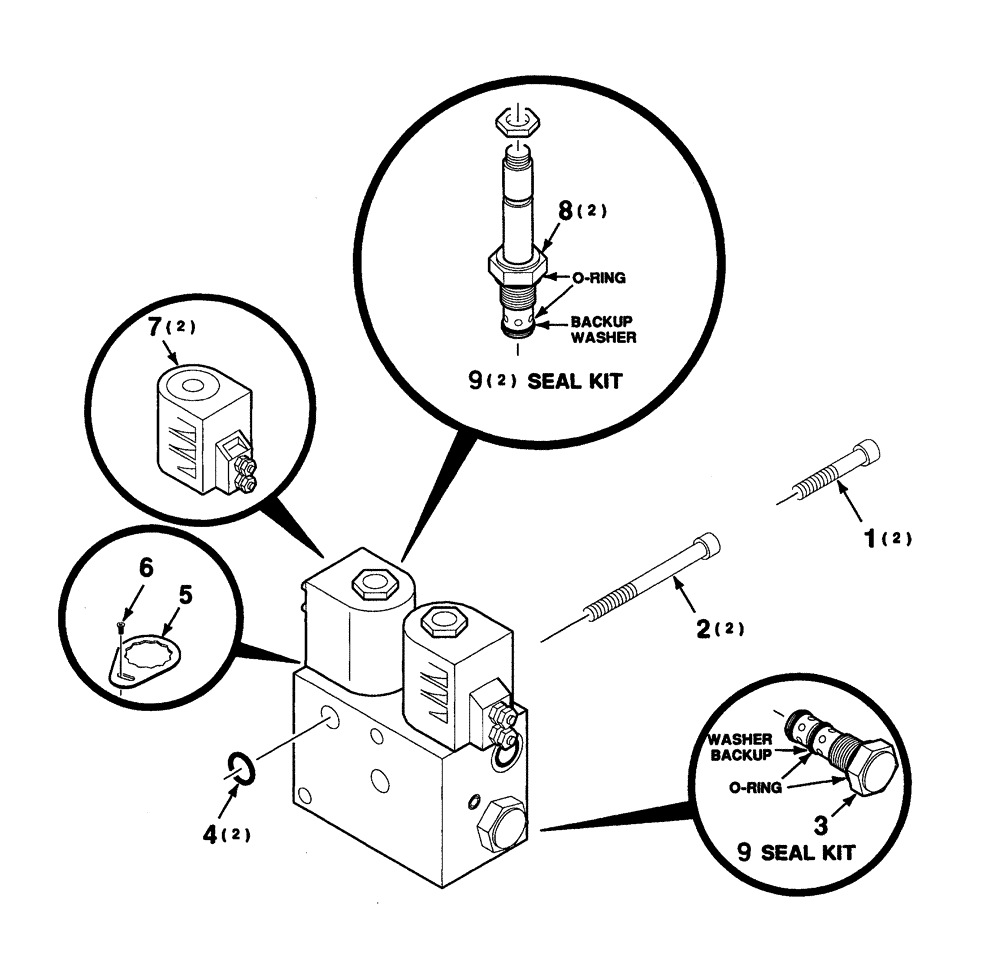

Запчасти Case IH 8880 (8-16) - HYDRAULIC MANIFOLD ASSEMBLY (35) - HYDRAULIC SYSTEMS

700715325

MANIFOLD

HYDRAULIC ASSEMBLY

1шт.

1

61-32536

HEX SOC SCREW,1/4"-20 x 2 1/4"

1/4-20 x 2-1/4 HSHCS

2шт.

2

700717379

SCREW

1/4-20 x 6 HSHCS

2шт.

3

700712917

CHECK VALVE

check

1шт.

4

700717377

O-RING

2шт.

5

700716903

LOCKING PLATE

lock hex

1шт.

6

440-1066

SCREW,Cross Pan Hd, #6-32 x 3/8"

6-32 x 3/8 CRPHMS

1шт.

7

700712921

COIL

12VDC DP ENCAP

2шт.

8

52848

VALVE

2W NC poppet

2шт.

9

700712678

KIT

seal

3шт.
