Запчасти Case IH 8880 (8-14) - DEFLECTOR HYDRAULIC ASSEMBLY (35) - HYDRAULIC SYSTEMS

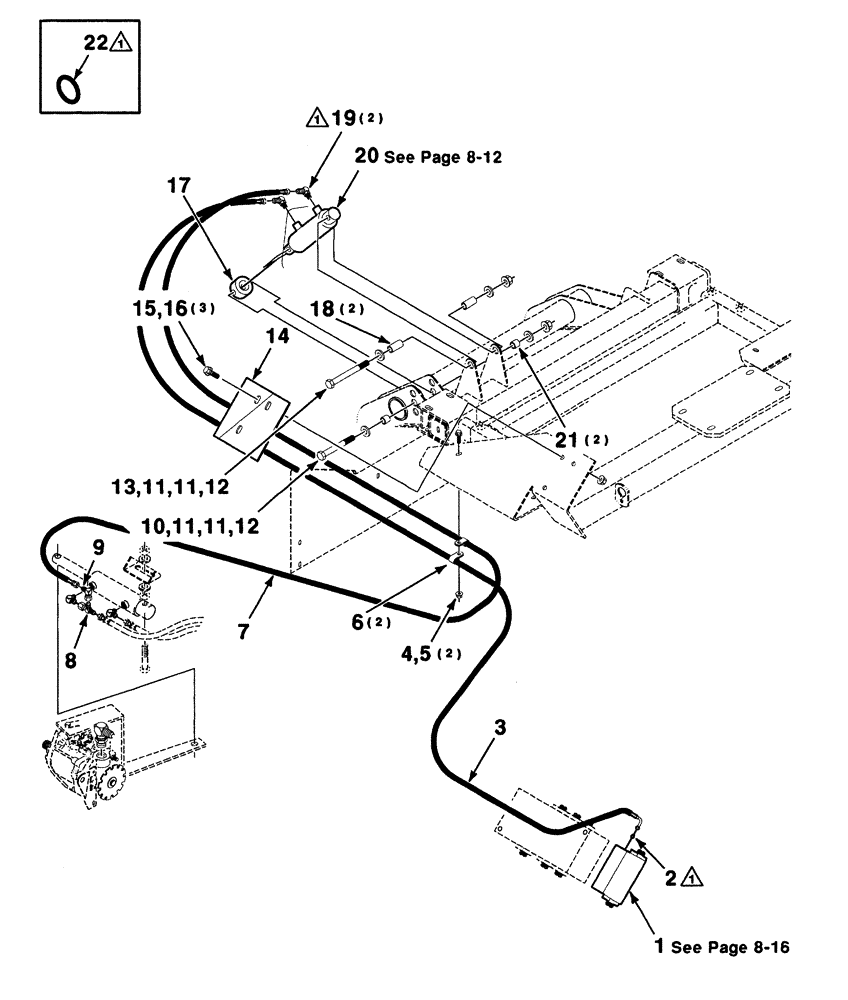

Схема запчастей Case IH 8880 - (8-14) - DEFLECTOR HYDRAULIC ASSEMBLY (35) - HYDRAULIC SYSTEMS
11
6
9
15
5
18
3
14
20
12
10
11
2
16
19
21
13
11
4
12
1
7
17
8
11
22

Артикул

Название

Примечание

Количество

1

700715325

MANIFOLD

ASSEMBLY

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

(Incl. item 22)

1шт.

3

700709244

HOSE

hydraulic

1шт.

4

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 x 1-1/4 HFS GR8

2шт.

5

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

6

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Hose

2шт.

7

7796840

HOSE

hydraulic

1шт.

8

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

Hydraulic

1шт.

9

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

10

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

11

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

5/8" bolt size

4шт.

12

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

2шт.

13

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8-11 x 6 C

1шт.

14

700151840

PLATE

clamp

1шт.

15

8701237

BOLT

1/2-13 x 1-1/2 HFS GR8

3шт.

16

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

3шт.

17

700151817

BUSHING

cylinder

1шт.

18

159723

SPACER

BUSHING

2шт.

19

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90° (Includes item 22)

2шт.

20

700711910

CYLINDER ASSY.

hydraulic

1шт.

21

6475842

SPACER

bushing

2шт.

22

738468

O-RING

1шт.

Выбрано товаров: 22
