(8-02) - HYDRAULIC ASSEMBLY- DEFLECTOR CONTROL

Запчасти Case IH 8840 (8-02) - HYDRAULIC ASSEMBLY- DEFLECTOR CONTROL (35) - HYDRAULIC SYSTEMS

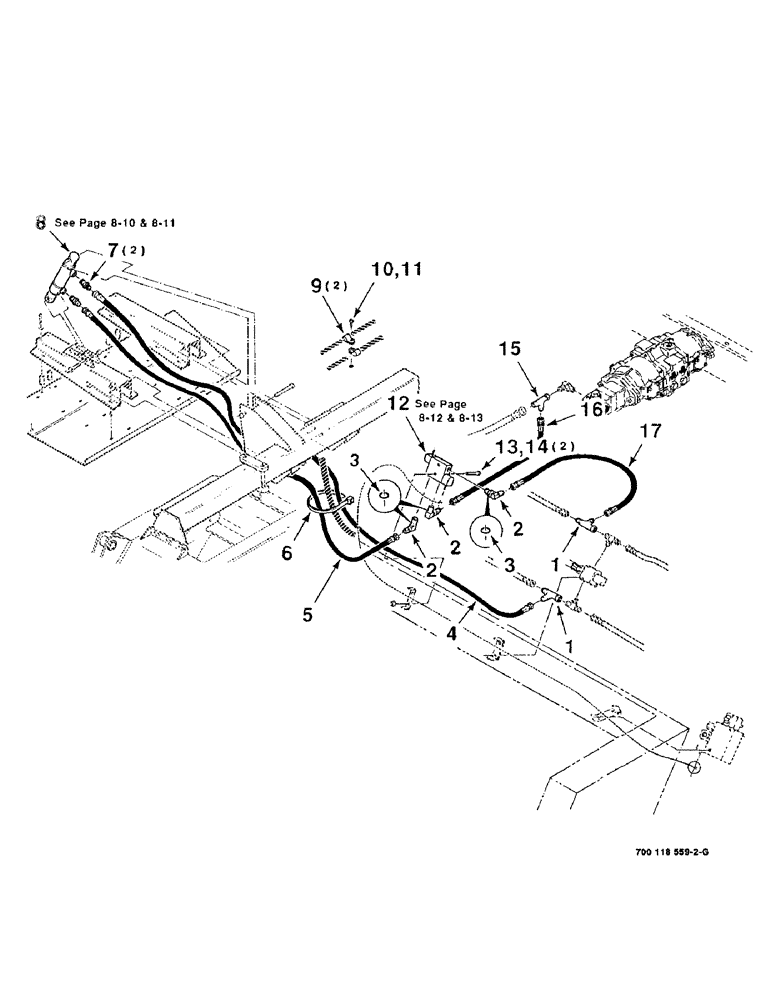

Схема запчастей Case IH 8840 - (8-02) - HYDRAULIC ASSEMBLY- DEFLECTOR CONTROL (35) - HYDRAULIC SYSTEMS
11
2
17
2
12
2
6
3
4
15
10
14
1
13
7
8
16
5
1
3
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700701550

3 WAY CONNECTION

TEE - swivel run

2шт.

2

7746555

ELBOW

- 90 degrees (Includes item 3)

3шт.

3

738468

O-RING

1шт.

4

700708989

HYDRAULIC HOSE,6.35 mm ID x 1550.00 mm, SAE 100R1

6.35 mm ID x 1550.00 mm, SAE 100R1

1шт.

5

1714633

HOSE ASSY.

HOSE - hydraulic

1шт.

6

7041007

STRAP

TIE - cable

1шт.

7

8746133

HYD CONNECTOR,9/16"-18, 37 Degree x 1/4"-18, NPTF

CONNECTOR (Includes item 3)

2шт.

8

7075625

CYLINDER

- hydraulic

1шт.

9

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

- hose

2шт.

10

7883333

BOLT,Hex, 5/16" - 18 x 1", Gr 120M

5/16-18 x 1 HWHMS

1шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5/16-18 HFSLN

1шт.

12

700707590

CONTROL VALVE

VALVE

1шт.

13

7701634

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8-16 x 2 C

2шт.

14

704247

NUT

3/8-16 HFSLN

2шт.

15

7846850

TEE

- swivel

1шт.

16

700707731

FLEXIBLE HOSE

HOSE - hydraulic

1шт.

17

7872864

HOSE ASSY.

HOSE - hydraulic

1шт.
