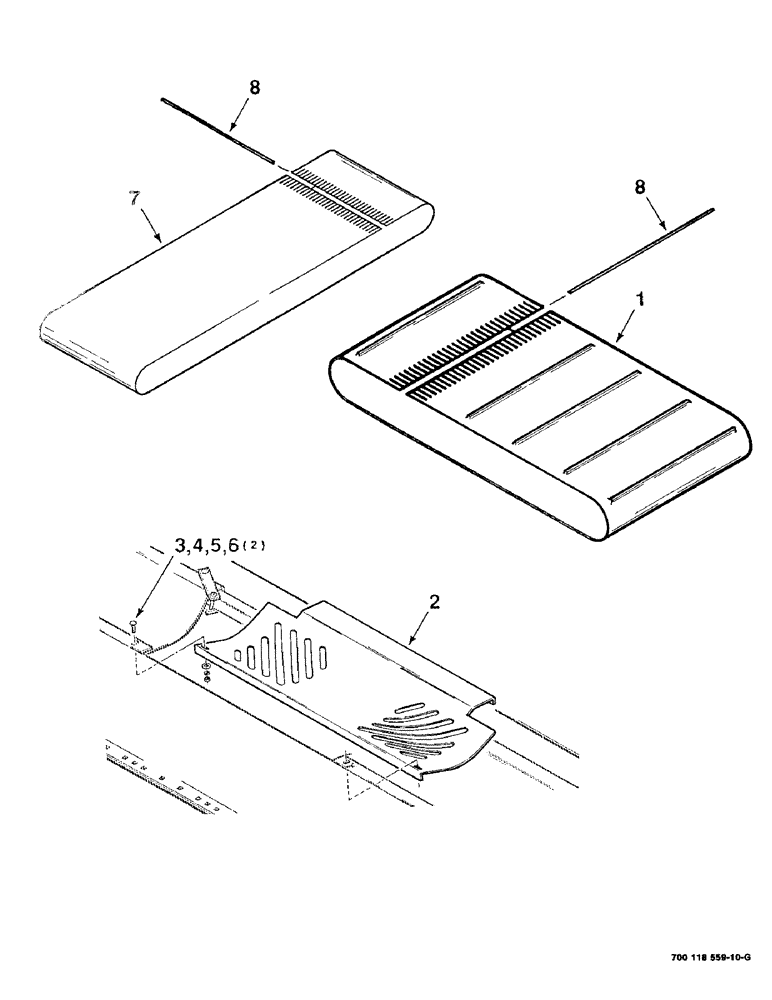

Запчасти Case IH 8840 (2-16) - PAN, CENTER, BELT AND DRAPER (58) - ATTACHMENTS/HEADERS

1

700709104

DRAPER

- main

1шт.

2

700117979

PAN

- center

1шт.

3

7700578

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

5/16-18 x 1 RHSNB

2шт.

4

705525

WASHER

5/16 HARDENED PLAIN WASHER

2шт.

5

705020

LOCK WASHER

5/16"

2шт.

6

704015

NUT,5/16"-18, G5

5/16-18 H

2шт.

7

700709103

CONVEYOR BELT,203.20 mm W x 2209.80 mm L

BELT, CONVEYOR , Side 203.20 mm W x 2209.80 mm L

1шт.

8

700709776

PIN

- lacing

2шт.
