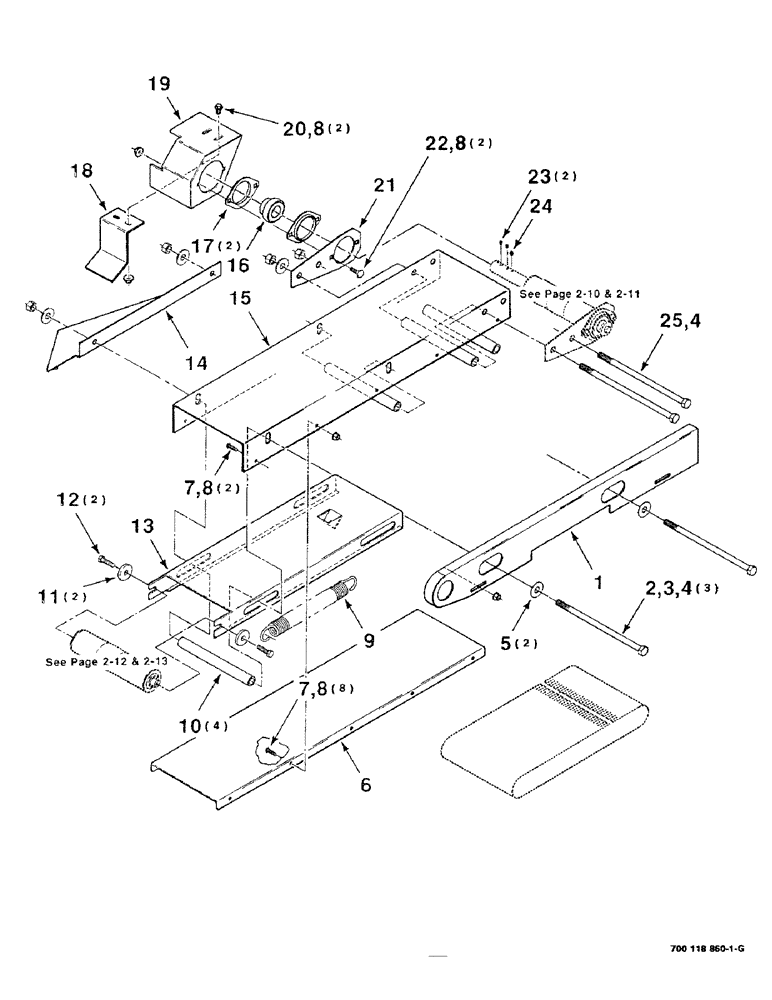

Запчасти Case IH 8840 (2-08) - CONVEYOR ASSEMBLY- SIDE FORMING (58) - ATTACHMENTS/HEADERS

1

700119646

SHIELD

1шт.

2

7773393

HARDWARE

1/2-13 x 10-1/2 B

3шт.

3

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

3шт.

4

86516876

COVER

1/2-13 H

4шт.

5

495-11053

WASHER,1/2", SAE

1/2 NARROW PLAIN WASHER

2шт.

6

700117691

CHANNEL

- filler

1шт.

7

700701068

SCREW

5/16-18 x 1/2 CRPHMS

10шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5/16-18 HFSLN

14шт.

9

758789

COIL SPRING

SPRING - extension

1шт.

10

700118872

SPACER

4шт.

11

451526

THRUST WASHER

2шт.

12

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

2шт.

13

700118861

CHANNEL

- front

1шт.

14

700118874

SUPPORT

- right

1шт.

15

700118862

CHANNEL

- rear

1шт.

16

50302

SPHERICAL BEARING,25.4 mm ID x 52 mm OD x 30.96 mm

- spherical

1шт.

17

50591

FLANGE,52mm

2шт.

18

700122693

SHIELD

1шт.

19

700118873

SUPPORT

- left

1шт.

20

7883317

SCREW,Hex Washer, 5/16" - 18 x 1/2"

5/16-18 x 1/2 HWHMS

2шт.

21

700118863

PLATE

- bearing

1шт.

22

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 RHSNB

2шт.

23

700707577

SET SCREW

SET - screw

2шт.

24

77032

FITTING

1/4-28 ZERK

1шт.

25

7771223

BOLT

1/2-13 x 10 B

1шт.
