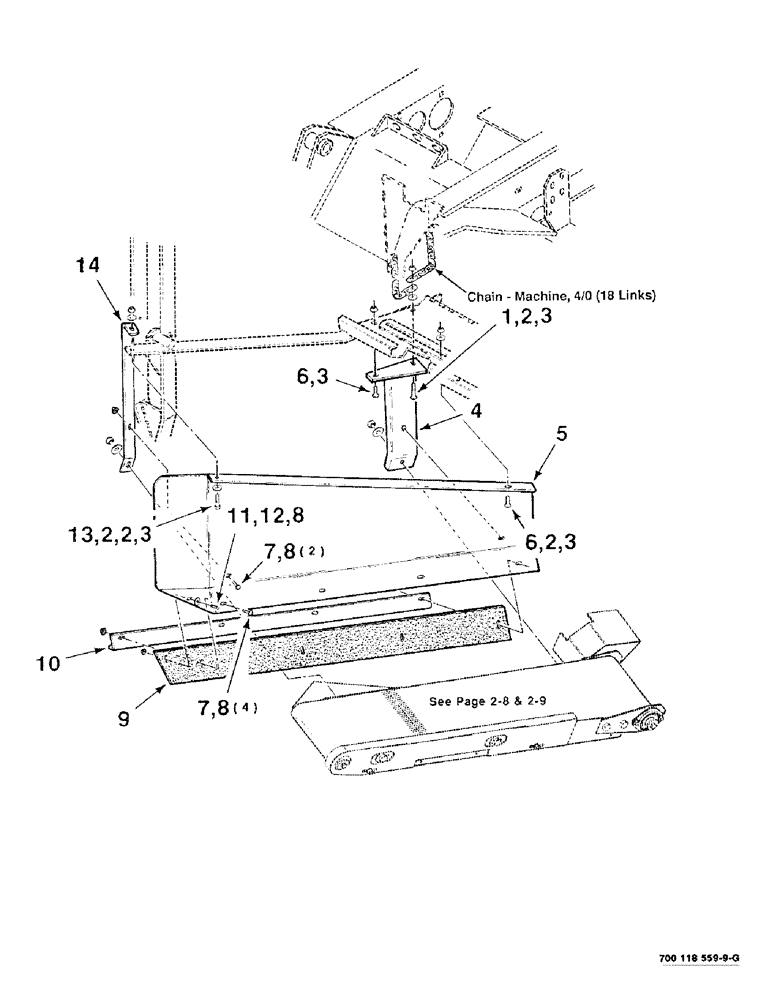

Запчасти Case IH 8840 (2-06) - CONVEYOR MOUNTING ASSEMBLY- RIGHT (58) - ATTACHMENTS/HEADERS

1

7700073

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

3/8-16 x 2 RHSNB

1шт.

2

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 HARDENED PLAIN WASHER

4шт.

3

704247

NUT

3/8-16 HFSLN

4шт.

4

700118880

SUPPORT

CHANNEL

1шт.

5

700118883

DEFLECTOR

- right

1шт.

6

700047

BOLT

3/8-16 x 1 RHSNB

2шт.

7

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 RHSNB

6шт.

8

704239

FRONT AXLE

5/16-18 HFSLN

7шт.

9

700118884

DEFLECTOR

- belting

1шт.

10

700118856

ANGLE

1шт.

11

700701069

SCREW,Cross Pan Hd, 5/16"-18 x 3/4"

5/16-18 x 3/4 CRPHMS

1шт.

12

705525

WASHER

5/16 HARDENED PLAIN WASHER

1шт.

13

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 x 1-1/4 C

1шт.

14

700118886

SUPPORT

STRAP - mounting

1шт.
