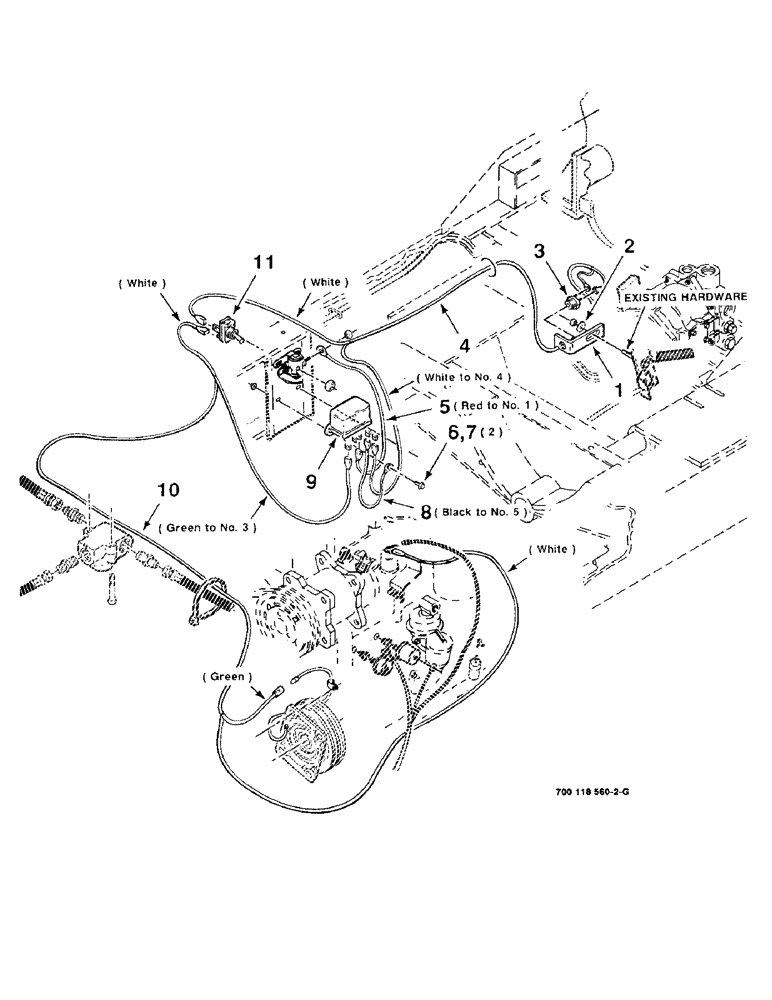

Запчасти Case IH 8840 (4-02) - WIRING ASSEMBLY- CONVEYOR DRIVE (55) - ELECTRICAL SYSTEMS

1

700118573

BRACKET

MOUNTING - switch

1шт.

2

705533

WASHER

3/8 HARDENED PLAIN WASHER

1шт.

3

8025637

SWITCH

- backup

1шт.

4

700709111

WIRE HARNESS

HARNESS - wire

1шт.

5

700707061

WIRE

- electrical

1шт.

6

7883267

BOLT,Hex, 1/4" - 20 x 1/2", Gr 120M

1/4-20 x 1/2 HWHMS

2шт.

7

523282

SERRATED NUT,Flg, USR, 1/4"-20

1/4-20 HFSLN

2шт.

8

700705661

WIRE HARNESS

WIRE - electrical

1шт.

9

700711182

RELAY

1шт.

10

700709114

HARNESS

- wire

1шт.

11

700706896

SWITCH

1шт.
