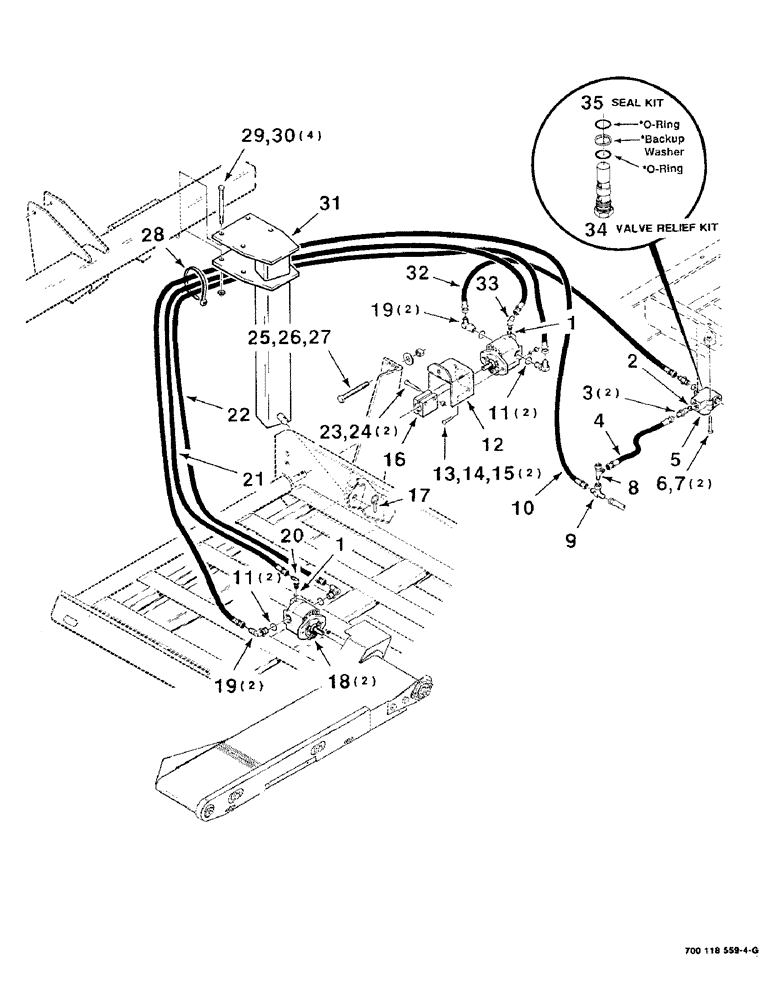

Запчасти Case IH 8840 (8-06) - HYDRAULIC CONVEYOR DRIVE ASSEMBLY, MOTORS (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
738468
O-RING
2шт.
2
738476
O-RING
1шт.
3
746735
CONNECTOR, ELEC
CONNECTOR (Includes item 2)
2шт.
4
700708988
HYDRAULIC HOSE,19.05 mm ID x 550.00 mm, SAE 100R1
19.05 mm ID x 550.00 mm, SAE 100R1
1шт.
5
700708457
HYDRAULIC VALVE
VALVE - relief
1шт.
6
702928
BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5
3/8-16 x 2-3/4 C
2шт.
7
704247
NUT
3/8-16 HFSLN
2шт.
8
700701296
3 WAY CONNECTION
TEE - swivel
1шт.
9
7046469
TEE
- swivel branch
1шт.
10
700709320
FLEXIBLE HOSE
HOSE - hydraulic
1шт.
11
738484
O-RING
4шт.
12
700118567
SUPPORT
MOUNTING - motor
1шт.
13
702274
BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5, Full Thd
7/16-14 x 1-1/2 C
2шт.
14
700702206
LOCK WASHER
7/16 L
2шт.
15
704080
NUT,7/16"-14, G5
7/16-14 H
2шт.
16
700118574
HYD CONNECTOR
COUPLER - clamp
1шт.
17
762203
PIN
- linch
1шт.
18
700708486
HYDRAULIC MOTOR
MOTOR - gear
2шт.
19
746768
ELBOW
- 90 degrees (Includes item 11)
4шт.
20
7746555
ELBOW
- 90 degress (Includes item 1)
1шт.
21
700706300
FLEXIBLE HOSE
HOSE - hydraulic
1шт.
22
700708987
HYDRAULIC HOSE,19.05 mm ID x 2700.00 mm, SAE 100R2
19.05 mm ID x 2700.00 mm, SAE 100R2
1шт.
23
7701634
BOLT,Hex, 3/8" - 16 x 2", Gr 5
3/8-16 x 2 C
2шт.
24
704023
NUT,3/8"-16, G5
3/8-16 H
2шт.
25
873992
BOLT
3/4-10 x 5 FTC
1шт.
26
705566
WASHER
3/4 HARDENED PLAIN WASHER
1шт.
27
704528
NUT,3/4"-10, G5
3/4-10 H
1шт.
28
7041007
STRAP
TIE - cable
1шт.
29
703785
BOLT,Hex, 1/2" - 13 x 6", Gr 5
1/2-13 x 6 C
4шт.
30
704254
NUT,Flg, USR, 1/2"-13
1/2-13 HFSLN
4шт.
31
700118582
SUPPORT
MOUNTING - conveyor
1шт.
32
700708986
HYDRAULIC HOSE,19.05 mm ID x 930.00 mm, SAE 100R2
19.05 mm ID x 930.00 mm, SAE 100R2
1шт.
33
792374
ELBOW
- 45 degrees (Includes item 1)
1шт.
34
700709211
VALVE PRESSURE RELIE
KIT - valve, relief
1шт.
35
700710693
SEAL,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro
KIT
1шт.
Выбрано товаров: 35
