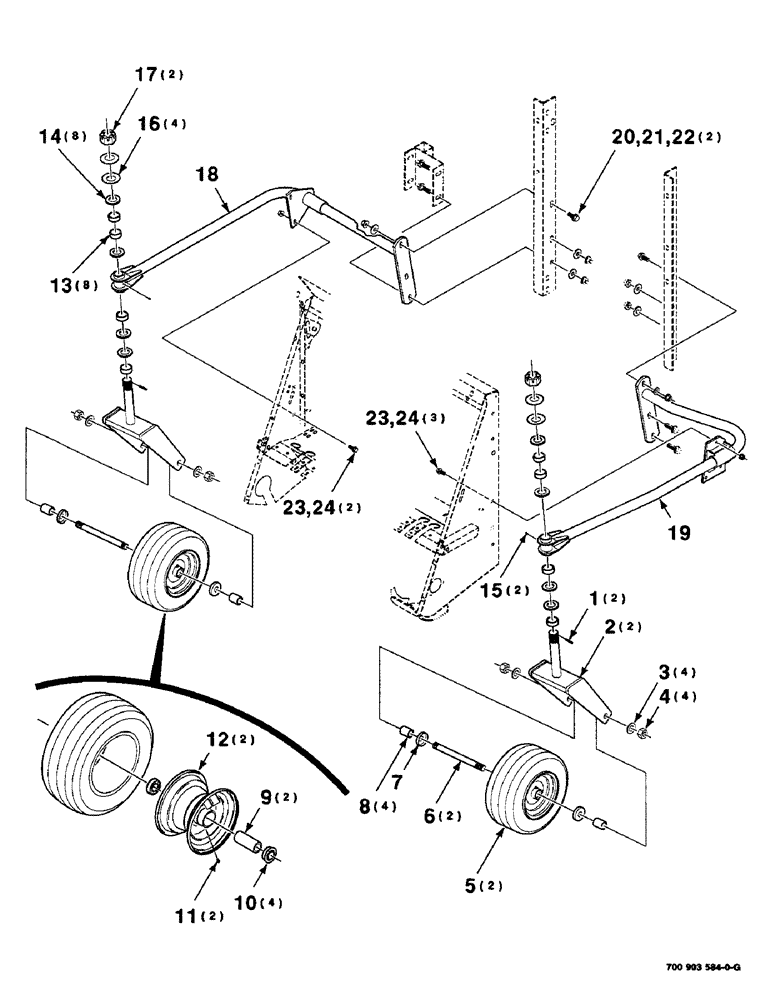

Запчасти Case IH 8750 (9-6) - GAGE WHEEL KIT, HK70839 COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY (88) - ACCESSORIES

HK70839

GAGE WHEEL KIT COMPLETE

1шт.

1

38-12032

LOCK PIN,5/16" x 2", Slotted

Pin, 5/16" x 2", Slotted

2шт.

2

700127764

FORK

WA

2шт.

3

495-21106

WASHER,1"

1 HARDENED PLAIN WASHER

4шт.

4

425-1016

NUT,1"-8, G5

4шт.

5

700716366

WHEEL

ASSEMBLY

2шт.

6

700127760

ROD

- threaded

2шт.

7

700127756

RING

- grass

4шт.

8

700127804

SPACER

4шт.

9

700714562

SPACER

2шт.

10

700714371

FLANGED BEARING

BEARING - flange

4шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

12

700716367

WHEEL

2шт.

13

700127802

TUBE,50.8 mm OD, 19 mm Length

8шт.

14

6383285

SPACER

8шт.

15

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

16

700714282

WASHER

- spring, conical

4шт.

17

25-1324

SLOTTED NUT,1 1/2"-12, G5

1-1/2-12 SHN GR2

2шт.

18

700126261

ARM

WA - right

1шт.

19

700126253

ARM

WA - left

1шт.

20

700710148

BOLT,Hex Flg, 5/8" - 11 x 1 3/4", Gr 8

5/8-11 X 1-3/4 HFS GR8

2шт.

21

700711165

WASHER,17.3mm ID x 45.21mm OD x 4.06mm Thk

5/8 HARDENED WIDE PLAIN WASHER

2шт.

22

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

2шт.

23

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

1/2-13 X 1-1/4 HFS GR8

5шт.

24

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

5шт.
