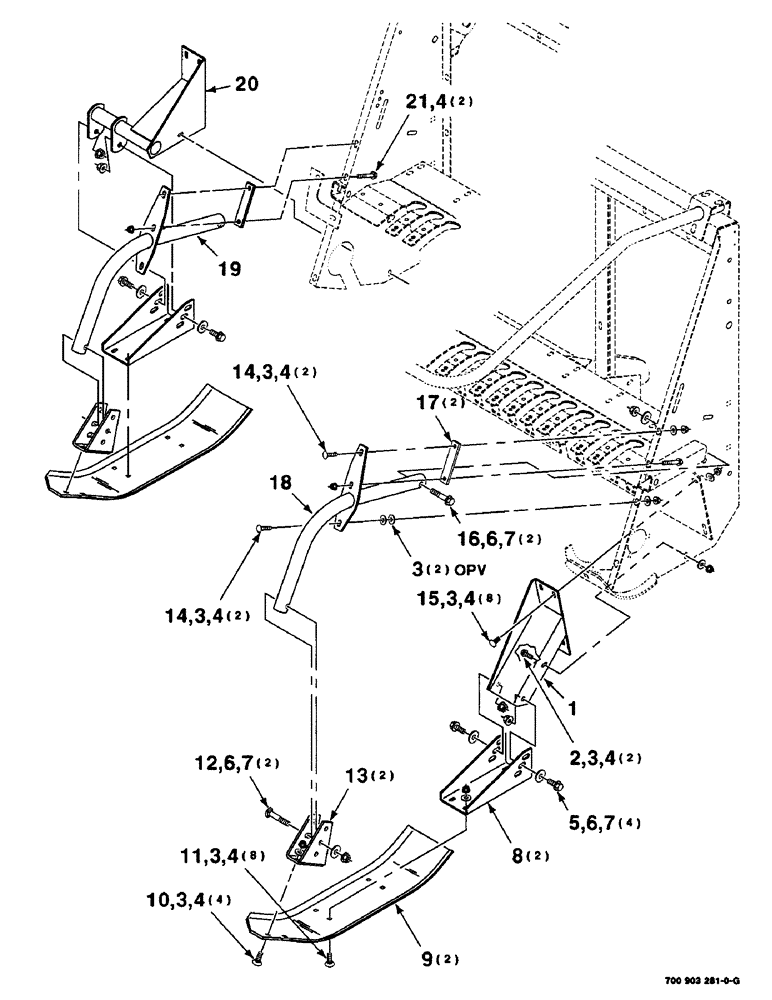

Запчасти Case IH 8750 (9-4) - PICK-UP SKID SHOE KIT, 700903280 COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY (88) - ACCESSORIES

700903280

PICK-UP SKID SHOE KIT COMPLETE

1шт.

1

700127701

MOUNTING PARTS

MOUNTING WA - left

1шт.

2

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

3

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

28шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

28шт.

5

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

1/2-13 X 1-1/4 HFS GR8

4шт.

6

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

8шт.

7

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

8шт.

8

700127711

MOUNTING PARTS

MOUNTING

2шт.

9

700127700

SKID/SHOE

SHOE - skid

2шт.

10

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

4шт.

11

707042

BOLT,#3, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 PLOW BOLT

8шт.

12

433-848

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

1/2-13 X 3 RHSNB

2шт.

13

700127713

MOUNTING PARTS

MOUNTING WA

2шт.

14

111-361

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/2", G5

4шт.

15

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

8шт.

16

700710849

BOLT

1/2-13 X 2-1/2 HFS GR8

2шт.

17

700127721

PANEL SUPPORT

PLATE

2шт.

18

700127716

PANEL SUPPORT

SUPPORT WA - left

1шт.

19

700127719

PANEL SUPPORT

SUPPORT WA - right

1шт.

20

700127705

MOUNTING PARTS

MOUNTING WA - right

1шт.

21

700111132

HOUSING

3/8-16 X 2 HFS GR8

2шт.
