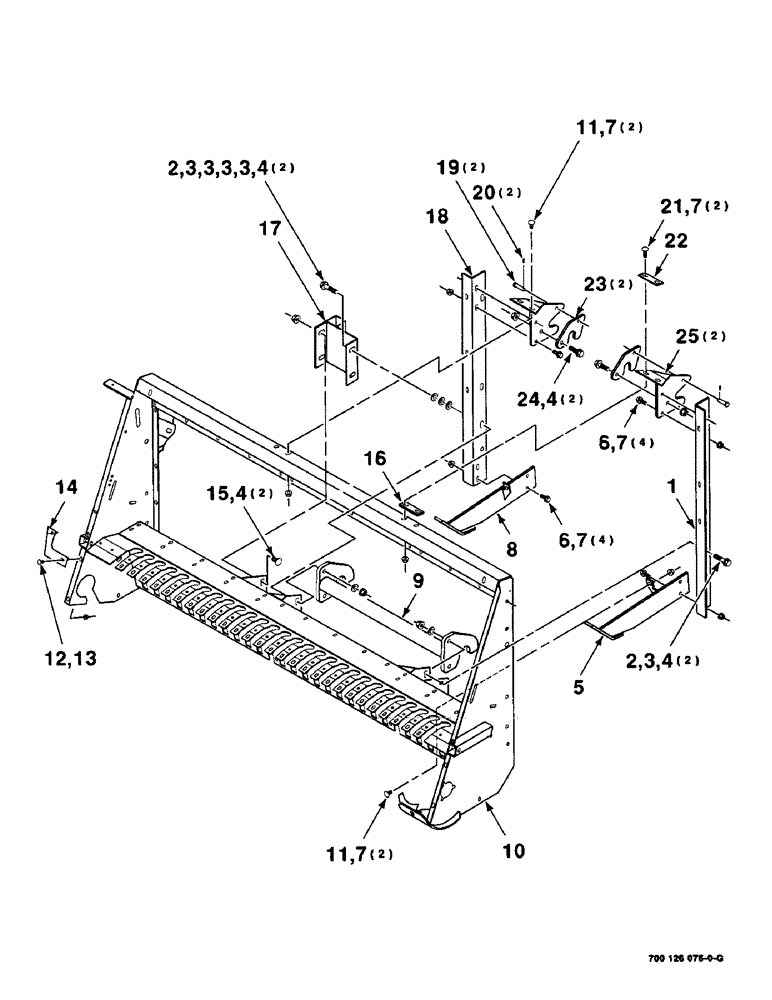

Запчасти Case IH 8750 (7-2) - HEADER FRAME ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

700126114

ANGLE

- left

1шт.

2

360-1040

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

5/8-11 X 2-1/2 HFS GR8

4шт.

3

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

10шт.

4

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

8шт.

5

700126121

SKID/SHOE

SKID WA - shoe, left

1шт.

6

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

1/2-13 X 1-1/4 HFS GR8

8шт.

7

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

14шт.

8

700126122

SKID/SHOE

SKID WA - shoe, right

1шт.

9

700126111

SUPPORT

WA - lower

1шт.

10

700126084

FRAME

WA

1шт.

11

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

4шт.

12

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

1шт.

13

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

1шт.

14

700126205

WEAR PLATE

PLATE WA

1шт.

15

7870132

BOLT,Sq Nk, 5/8" - 11 x 1 1/4", Gr 5

5/8-11 X 1-1/4 RHSNB

2шт.

16

700126270

SHIM

1шт.

17

700126254

GUIDE

WA

1шт.

18

700126115

ANGLE

- right

1шт.

19

427-8136

CLEVIS PIN,1/2" x 1.360"

1/2 X 1-1/2 CLEVIS PIN

2шт.

20

S120261

PIN

.148 WIRE HAIR PIN COTTER

2шт.

21

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 RHSNB

2шт.

22

700126271

SHIM

1шт.

23

700126120

SUPPORT

2шт.

24

360-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

5/8-11 X 2 HFS GR8

2шт.

25

700126117

MOUNTING PARTS

MOUNT WA - upper

2шт.
