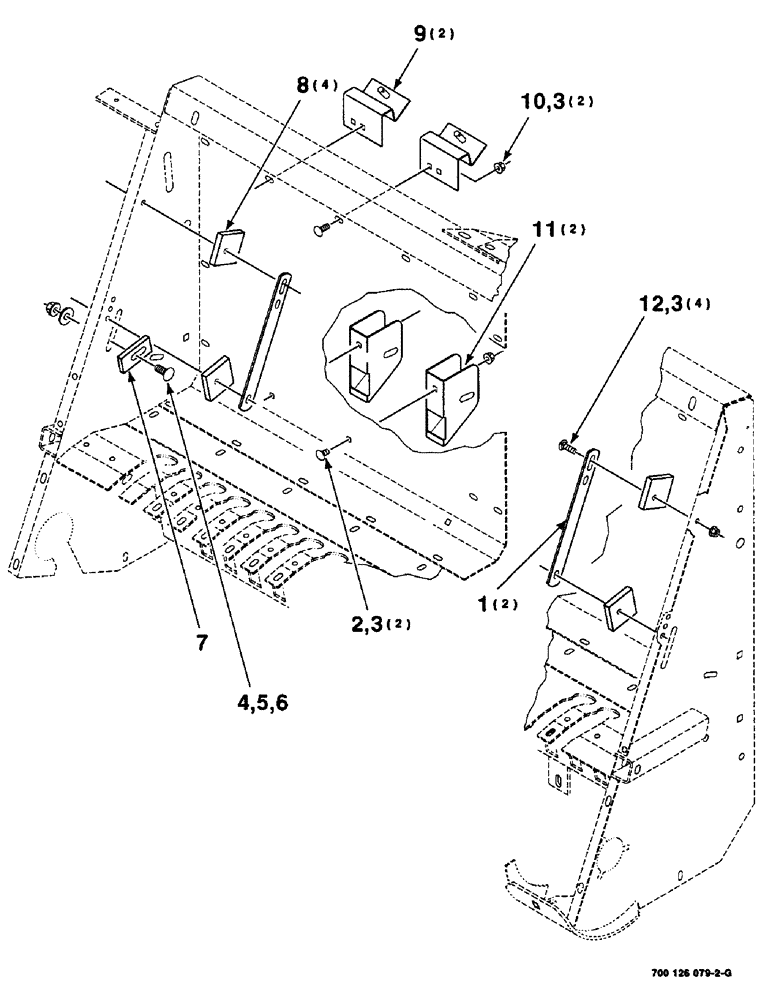

Запчасти Case IH 8750 (4-14) - AUGER STOP AND STAND MOUNT ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

700126195

STRAP

2шт.

2

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

8шт.

4

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

1шт.

5

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

1шт.

6

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

1шт.

7

700126309

WEAR PLATE

PLATE - backup

1шт.

8

700711040

PAD

4шт.

9

700126287

MOUNTING PARTS

MOUNTING - stand

2шт.

10

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

2шт.

11

700126288

PANEL SUPPORT

SUPPORT - stand

2шт.

12

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

4шт.
