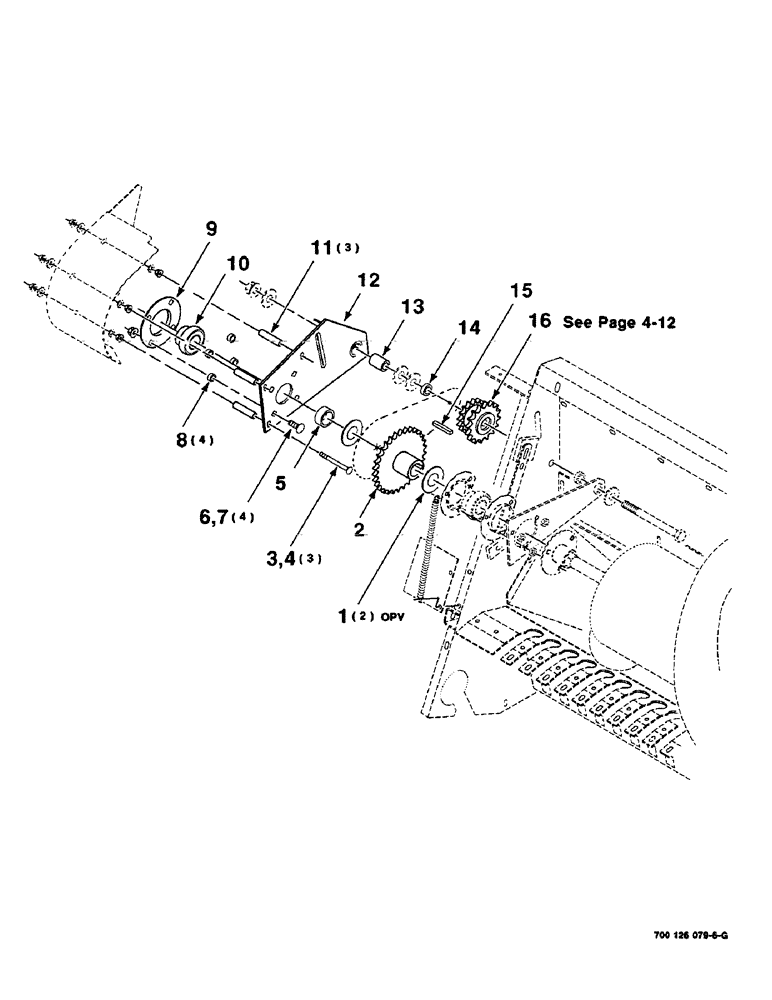

Запчасти Case IH 8750 (4-10) - AUGER DRIVE ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

740522

WASHER

1-1/2 X 10 GAUGE WRMB

2шт.

2

700126172

SPROCKET ASSY.

SPROCKET WA 60 B 30

1шт.

3

27868R1

CARRIAGE BOLT

3/8-16 X 4-1/4 RHSNB

3шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

3шт.

5

700126194

SPACER

1шт.

6

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 RHSNB

4шт.

7

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

4шт.

8

700126299

SPACER

4шт.

9

663562R1

FLANGE

1шт.

10

50468

SPHERICAL BEARING,38.1 mm ID x 80 mm OD x 22, 43.66 mm

- spherical

1шт.

11

263673

SUPPORT

3шт.

12

700126226

MOUNTING PARTS

MOUNTING WA - right

1шт.

13

700126302

BUSHING

1шт.

14

700126196

BUSHING

1шт.

15

Q51

KEY,3/8" Sq x 2 1/2", Par

1шт.

16

700126173

SPROCKET ASSY.

SPROCKET ASSEMBLY - idler

1шт.
