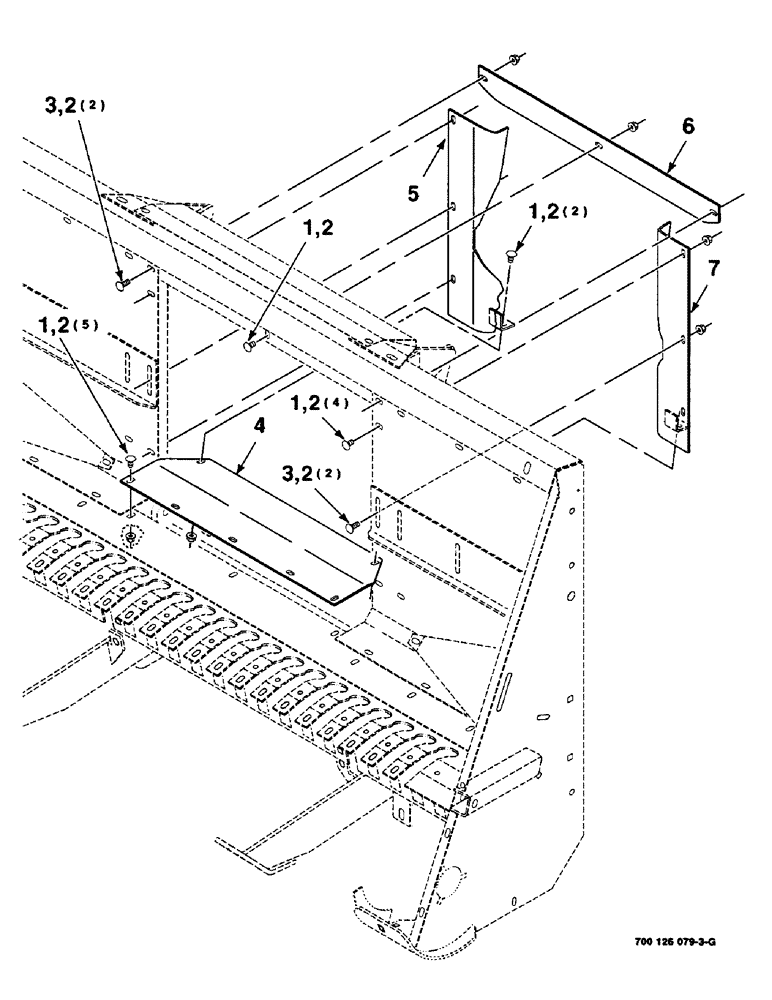

Запчасти Case IH 8750 (4-08) - AUGER CENTER FILLER ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

12шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

16шт.

3

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

4

700126229

PANEL SUPPORT

SUPPORT - pan

1шт.

5

700126231

FILLER

WA - right

1шт.

6

700126202

FILLER

- center

1шт.

7

700126230

FILLER

WA - left

1шт.
