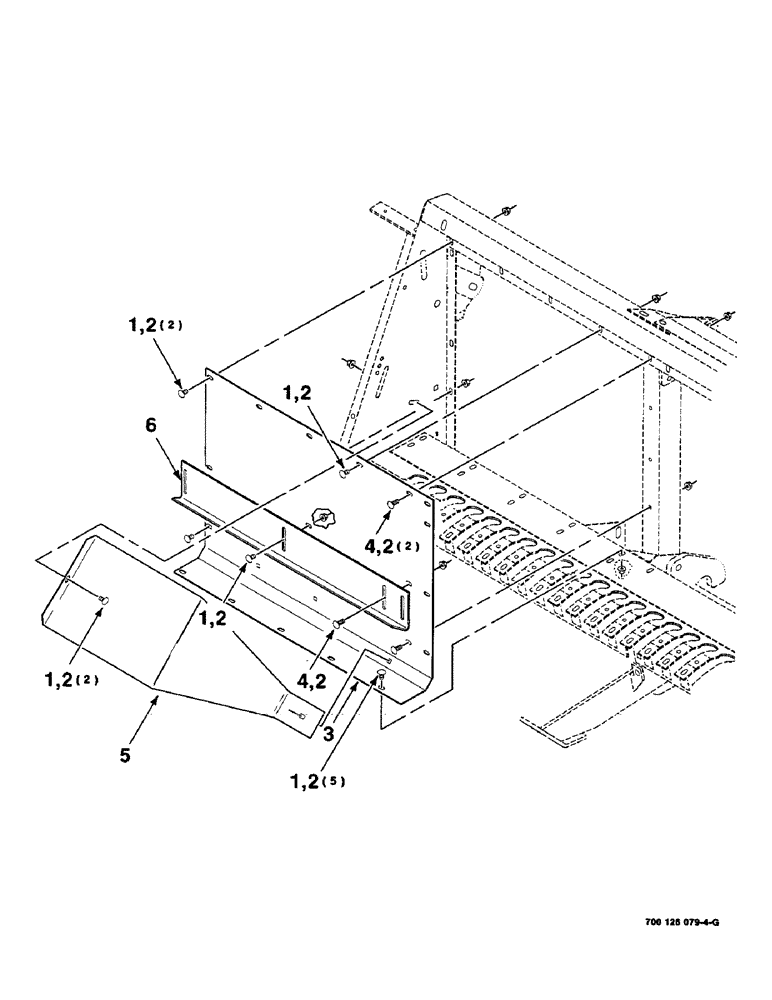

Запчасти Case IH 8750 (4-06) - AUGER RIGHT PAN ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

11шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

14шт.

3

700126181

PAN ASSY.

PAN - right

1шт.

4

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

3шт.

5

700127735

PANEL

FILLER - right

1шт.

6

700126183

STRIPPER

- right

1шт.
