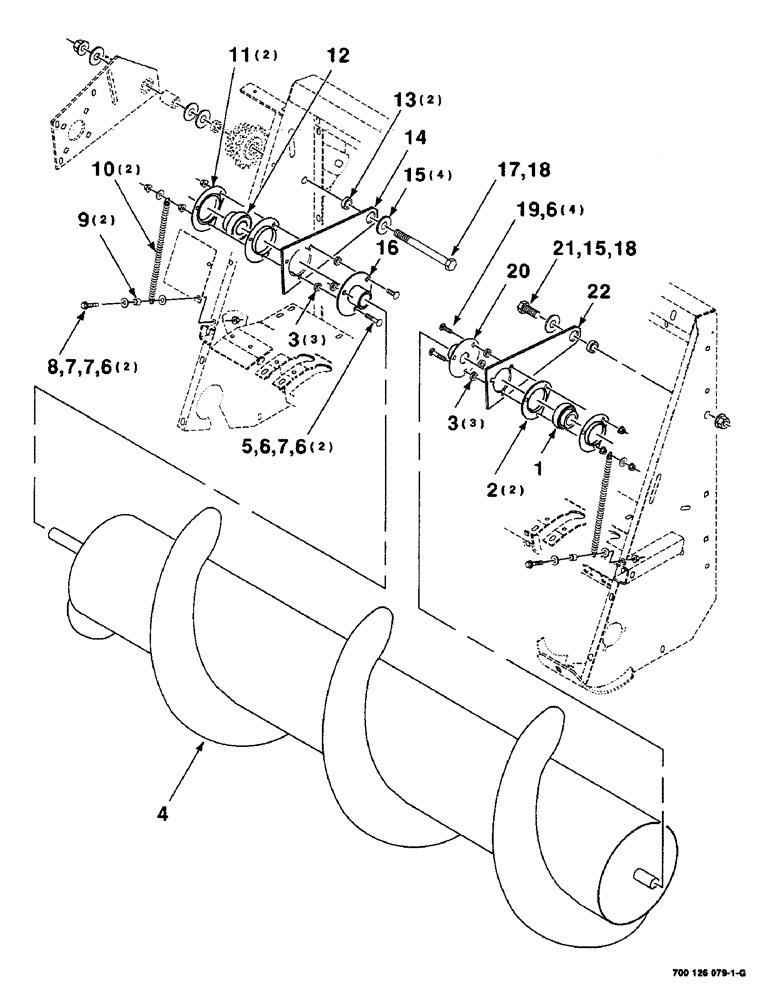

Запчасти Case IH 8750 (4-02) - AUGER ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - spherical

1шт.

2

405696

FLANGE

2шт.

3

700108843

SPACER

6шт.

4

700126161

AUGER

WA

1шт.

5

433-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 2", G5

2шт.

6

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

10шт.

7

495-21044

WASHER,3/8"

6шт.

8

700711084

BOLT

3/8-16 X 1-1/2 HFS GR8

2шт.

9

22586N

SPACER,3/8" Pipe x 9/16"

2шт.

10

758110

SPRING

- extension

2шт.

11

212555

FLANGE

2шт.

12

50468

SPHERICAL BEARING,38.1 mm ID x 80 mm OD x 22, 43.66 mm

- spherical

1шт.

13

700126196

BUSHING

2шт.

14

700126298

MOUNTING PARTS

MOUNTING

1шт.

15

700711166

WASHER

3/4 HARDENED WIDE PLAIN WASHER

5шт.

16

700127683

RING

- grass, 80

1шт.

17

414-12128

BOLT,Hex, 3/4" - 16 x 8", Gr 5

3/4-10 X 8 C

1шт.

18

232-53112

FLANGE NUT,Flg, 3/4"-10

3/4-10 HFTLN GR/G

2шт.

19

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

4шт.

20

700127684

RING

- grass, 62

1шт.

21

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

3/4-10 x 1-3/4 C

1шт.

22

700126187

MOUNTING PARTS

MOUNTING

1шт.
