(3-08) - PICKUP ASSEMBLY, LEFT, S.N. CFH0070184 AND LATER

Запчасти Case IH 8750 (3-08) - PICKUP ASSEMBLY, LEFT, S.N. CFH0070184 AND LATER (58) - ATTACHMENTS/HEADERS

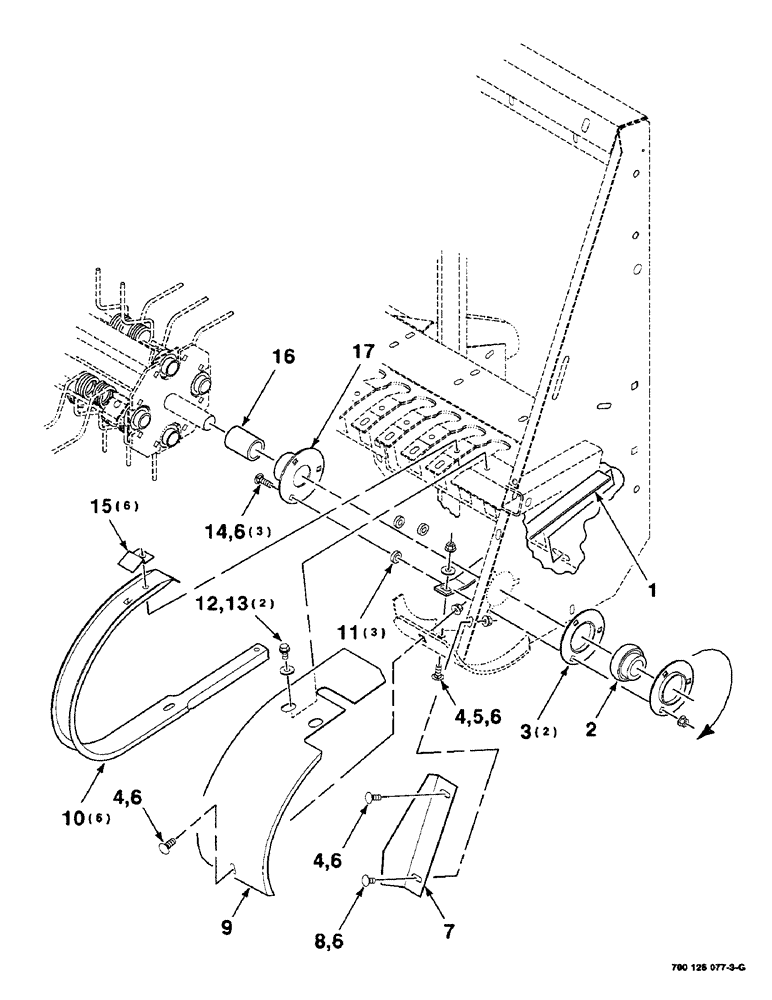

Схема запчастей Case IH 8750 - (3-08) - PICKUP ASSEMBLY, LEFT, S.N. CFH0070184 AND LATER (58) - ATTACHMENTS/HEADERS
8
14
6
7
9
4
6
3
15
10
6
11
6
13
5
4
1
16
17
4
6
2
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700127697

STRAP

1шт.

2

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - spherical

1шт.

3

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE

2шт.

4

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

3шт.

5

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

1шт.

6

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

7шт.

7

700126150

WEAR PLATE

PLATE - filler, left

1шт.

8

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

1шт.

9

700126147

SHIELD

WA - left

1шт.

10

700127733

TINE

WRAPPER WA - left

6шт.

11

700108843

SPACER

3шт.

12

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

2шт.

13

700710049

WASHER

3/8 FENDER WASHER

2шт.

14

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

3шт.

15

700126155

CLIP

6шт.

16

700126154

SPACER

1шт.

17

700126307

RING

- grass

1шт.
