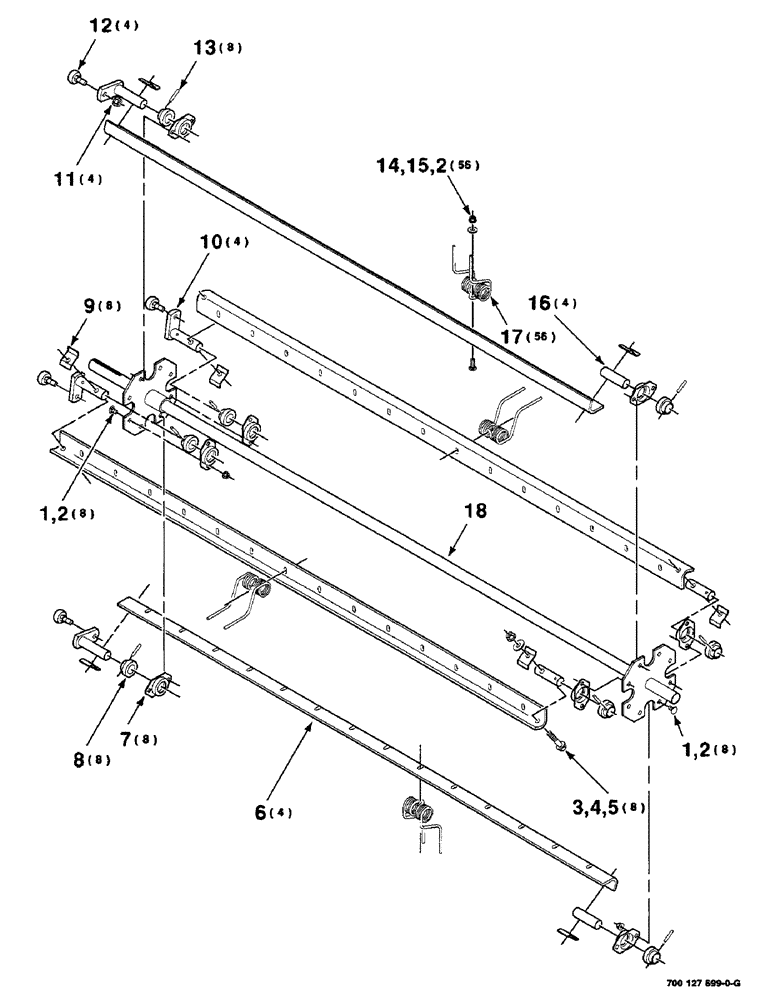

Запчасти Case IH 8750 (3-02) - PICKUP REEL ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

16шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

72шт.

3

700712882

BOLT,Hex Flg, 1/2" - 13 x 2 1/4", Gr 8

1/2-13 X 2-1/4 HFS GR8

8шт.

4

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

8шт.

5

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

8шт.

6

700126126

TINE

BAR - tine

4шт.

7

700108622

FLANGED BEARING

FLANGE - bearing

8шт.

8

710392

BEARING, ROLLER, CYL,27.33 mm ID x 47.09 mm OD x 25.4 mm

BEARING

8шт.

9

700127730

CLIP

8шт.

10

700127680

CRANK

WA

4шт.

11

700707867

NUT

1/2-20 HFTLN GR/G

4шт.

12

700705612

CAM FOLLOWER

BEARING - cam, follower

4шт.

13

38-31222

PIN,3/16" x 1 3/8", Coiled

8шт.

14

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

56шт.

15

495-21044

WASHER,3/8"

56шт.

16

700127679

SHAFT

- stub

4шт.

17

700712781

TINE

- double

56шт.

18

700127692

REEL

WA

1шт.
