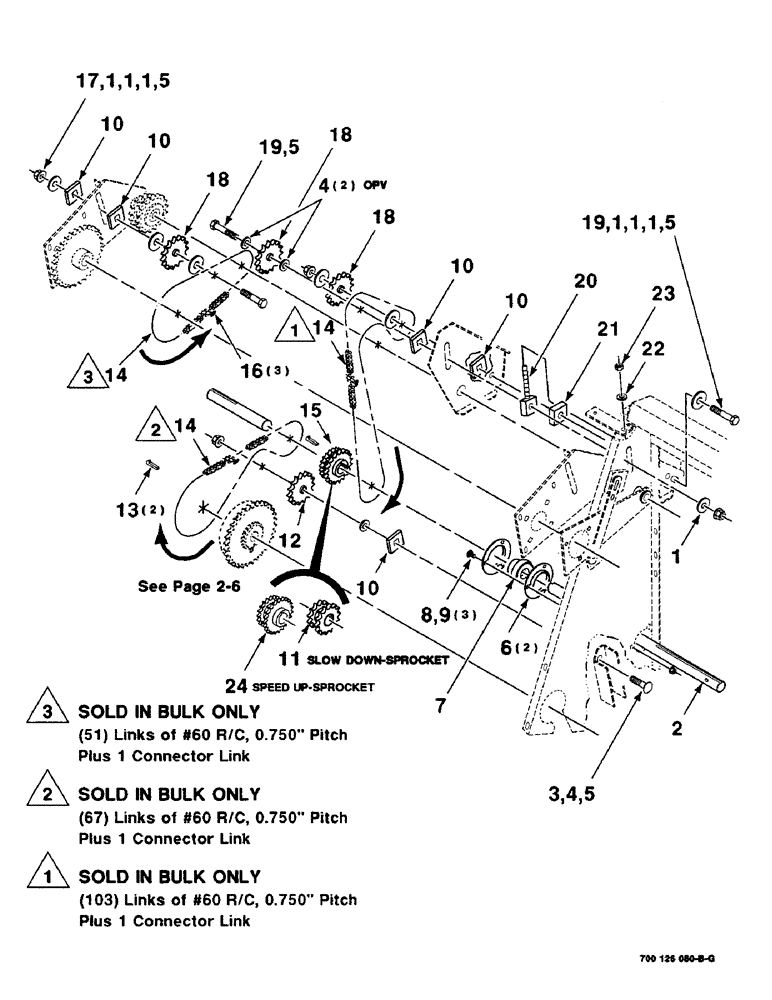

Запчасти Case IH 8750 (2-4) - DRIVE ASSEMBLY, RIGHT (58) - ATTACHMENTS/HEADERS

1

700711165

WASHER,17.3mm ID x 45.21mm OD x 4.06mm Thk

5/8 HARDENED WIDE PLAIN WASHER

7шт.

2

700126217

DRIVE SHAFT

SHAFT - drive

1шт.

3

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

5/8-11 X 2-1/2 RHSNB

1шт.

4

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

3шт.

5

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

4шт.

6

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE - bearing

2шт.

7

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - spherical

1шт.

8

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3шт.

9

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

3шт.

10

700126216

SPACER

5шт.

11

700126310

SPROCKET ASSY.

SPROCKET WA "C" 12-14

1шт.

12

629972R91

DRIVE SPROCKET,15T

SPROCKET - idler, 15T

1шт.

13

61416

KEY

1/4 X 2-3/4 KEY - gib

2шт.

14

7086002

CHAIN (AG)

CHAIN - roller, #60 (10 foot bulk)

3шт.

15

700126214

DRIVE SPROCKET

SPROCKET WA "C" 14-16

1шт.

16

241-1316

LINK,19.05mm Pitch

CONNECTOR LINK - #60 R/C

3шт.

17

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

18

541857R92

SPROCKET,15T

- idler, 15T

3шт.

19

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

20

700126199

ROD

WA

1шт.

21

700126200

SPACER

1шт.

22

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

1шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

24

700128690

SPROCKET ASSY.

SPROCKET WA "C" 19-22

1шт.
