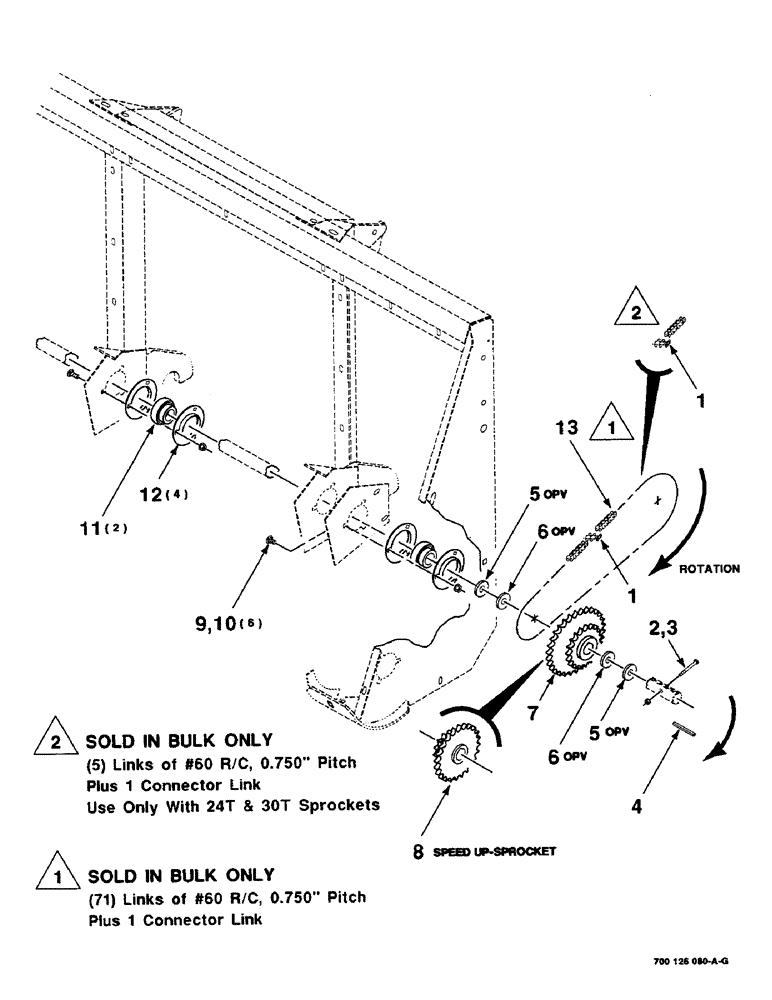

Запчасти Case IH 8750 (2-2) - DRIVE ASSEMBLY, LEFT (58) - ATTACHMENTS/HEADERS

1

241-1316

LINK,19.05mm Pitch

CONNECTOR LINK - #60 R/C

2шт.

2

113-12

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

1/4-20 X 2-1/2 C

1шт.

3

1703354

NUT

1/4-20 HFTLN GR/G

1шт.

4

761320

KEY

1/4 X 2-1/4 STRAIGHT KEY

1шт.

5

52324

BUSHING

1-1/4 X 10 GAUGE NRMB

2шт.

6

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 14 GAUGE NRMB

2шт.

7

700126206

SPROCKET ASSY.

SPROCKET WA "C" 18-30

1шт.

8

700126220

SPROCKET ASSY.

SPROCKET WA "C" 13-24

1шт.

9

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

6шт.

10

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

6шт.

11

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - spherical

2шт.

12

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE - bearing

4шт.

13

7086002

CHAIN (AG)

CHAIN - roller, #60 (10 foot bulk)

1шт.
