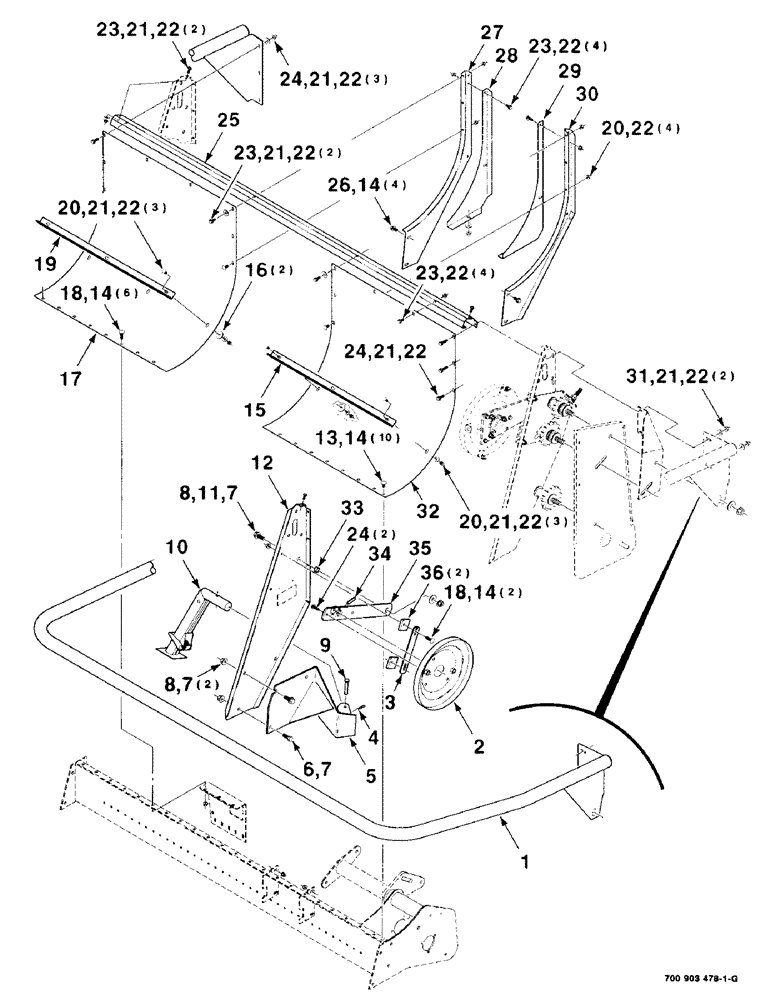

Запчасти Case IH 8725 (3-06) - HEADER PANELS, JACK AND STRIPPER ASSEMBLIES

1

700124851

GUARD

WA

1шт.

2

6572937

RING

- grass

1шт.

3

6146500

STRAP

1шт.

4

407209R1

CLIP

.091 WIRE HAIR PIN COTTER

1шт.

5

6621692

BRACKET

WA - jack

1шт.

6

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

7

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

4шт.

8

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

1/2-13 X 1-1/4 HFS GR8

3шт.

9

427-6225

CLEVIS PIN,3/8" x 2 1/4"

3/8 X 2-1/8 CLEVIS PIN

1шт.

10

6897979

WASHER

JACK WA

1шт.

11

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

1шт.

12

6147680

PANEL

- mtg, auger, right

1шт.

13

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

10шт.

14

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

22шт.

15

6572978

STRIPPER

- left

1шт.

16

700710049

WASHER

3/8 FENDER WASHER

2шт.

17

6183537

PANEL

- back, right

1шт.

18

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

8шт.

19

6572986

STRIPPER

- right

1шт.

20

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

10шт.

21

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

16шт.

22

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

28шт.

23

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

12шт.

24

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

6шт.

25

6183503

COVER

- upper

1шт.

26

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

4шт.

27

6146682

SUPPORT

- right

1шт.

28

6183610

DEFLECTOR

- right

1шт.

29

6183602

DEFLECTOR

- left

1шт.

30

6146674

SUPPORT

- left

1шт.

31

163-41

SCREW,Sl Hex Wshr Hd, 5/16" - 18 x 1 1/4"

5/16-18 X 1-1/4 HWHMS

2шт.

32

6183511

PANEL

- back, left

1шт.

33

A28893

BUSHING

- 9.52

1шт.

34

138-174

LOCK PIN,3/8" x 1 1/2", Slotted

PIN, 3/8" x 1 1/2", Slotted

1шт.

35

6572952

ARM ASSY.

ARM - right

1шт.

36

6157945

PAD

2шт.
