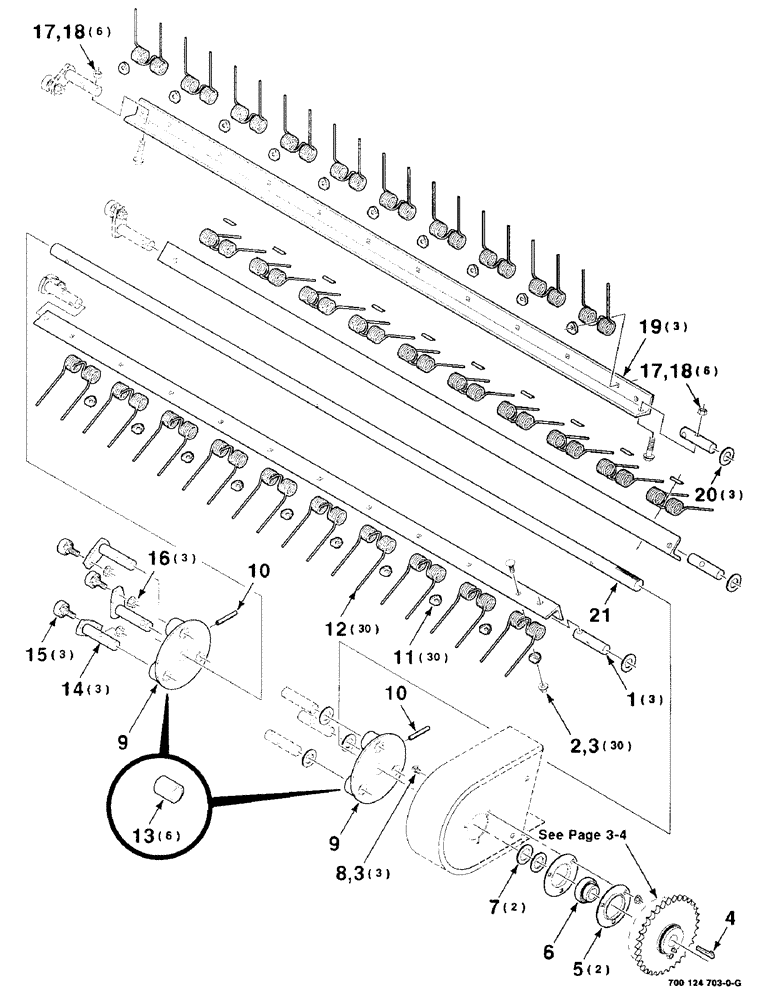

Запчасти Case IH 8725 (3-02) - PICKUP REEL ASSEMBLY

1

6233639

SHAFT

3шт.

2

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

30шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

33шт.

4

249-1

KEY

1/4 X 1-3/4 KEY - gib

1шт.

5

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE

2шт.

6

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - spherical

1шт.

7

52324

BUSHING

1-1/4 X 10 GAUGE NRMB

2шт.

8

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

3шт.

9

6141345

SUPPORT

BULKHEAD ASSEMBLY (includes item 13)

2шт.

10

38-12440

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, LOCK, 3/8" x 2 1/2", Slotted

2шт.

11

261024

CLIP

- tine

30шт.

12

7751621

TINE

- double

30шт.

13

712869

BUSHING

BEARING

6шт.

14

6256267

KIT

CRANK

3шт.

15

700705612

CAM FOLLOWER

BEARING - cam, follower

3шт.

16

700707867

NUT

1/2-20 HFTLN GR/G

3шт.

17

121-433

FLANGE BOLT,Hex, 1/2" - 13 x 2", Gr 8

1/2-13 X 2 HFS GR8

12шт.

18

230-4118

LOCK NUT,1/2"-13, GA

1/2-13 HTLN GR/B

12шт.

19

6256424

ANGLE

- pickup

3шт.

20

495-21106

WASHER,1"

1 HARDENED PLAIN WASHER

3шт.

21

6171110

SHAFT

- pickup

1шт.
