Запчасти Case IH 8725 (2-4) - DRIVE ASSEMBLY, LOWER

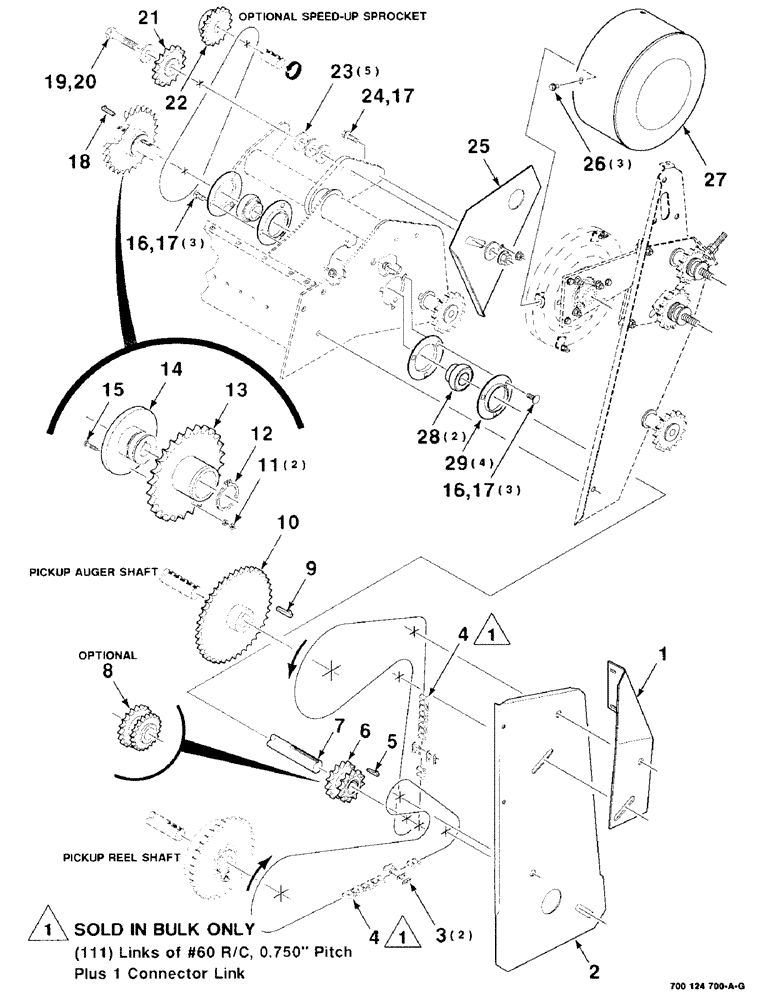

Схема запчастей Case IH 8725 - (2-4) - DRIVE ASSEMBLY, LOWER
11
20
13
10
22
18
4
28
26
27
3
21
15
8
14
2
5
4
23
12
9
19
25
17
17
1
29
7
17
16
6
24
16

Артикул

Название

Примечание

Количество

1

700124712

SUPPORT

- idler

1шт.

2

700124714

SHIELD

1шт.

3

241-1316

LINK,19.05mm Pitch

LINK - connector, #60 w/spring clip

2шт.

4

611362R91

CHAIN (AG)

CHAIN - roller, #60 (10 foot bulk)

2шт.

5

761155

BUCKET TOOTH KEY

1/4 X 2 KEY - gib

1шт.

6

700126310

SPROCKET ASSY.

SPROCKET WA - 14 and 12 tooth

1шт.

7

700124715

SHAFT

1шт.

8

700126214

DRIVE SPROCKET

SPROCKET WA - 14 and 16 tooth

1шт.

9

761304

KEY

3/8 X 2-1/2 KEY - gib

1шт.

10

700124716

SPROCKET ASSY.

SPROCKET WA - 60B41 tooth

1шт.

11

1703354

NUT

1/4-20 H

2шт.

12

101-11215

SNAP RING,#215, 2.026", Ext

RING, SNAP, #215, 2.026", Ext

1шт.

13

6285506

SPROCKET ASSY.

SPROCKET - 26 tooth

1шт.

14

6467781

HUB

- sprocket

1шт.

15

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

16

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

6шт.

17

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

7шт.

18

Q3936

KEY,Gib, 5/16" Sq x 2 1/2"

5/16 X 2-1/2 KEY - gib

1шт.

19

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

20

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

1шт.

21

541857R92

SPROCKET,15T

- idler, 15 tooth

1шт.

22

700124720

DRIVE SPROCKET

SPROCKET - speedup, 60B17 tooth

1шт.

23

700711165

WASHER,17.3mm ID x 45.21mm OD x 4.06mm Thk

5/8 HARDENED WIDE PLAIN WASHER

5шт.

24

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

1шт.

25

700124713

SHIELD

1шт.

26

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

3шт.

27

700124850

SHIELD

WA

1шт.

28

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - spherical

2шт.

29

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE

4шт.

Выбрано товаров: 29
