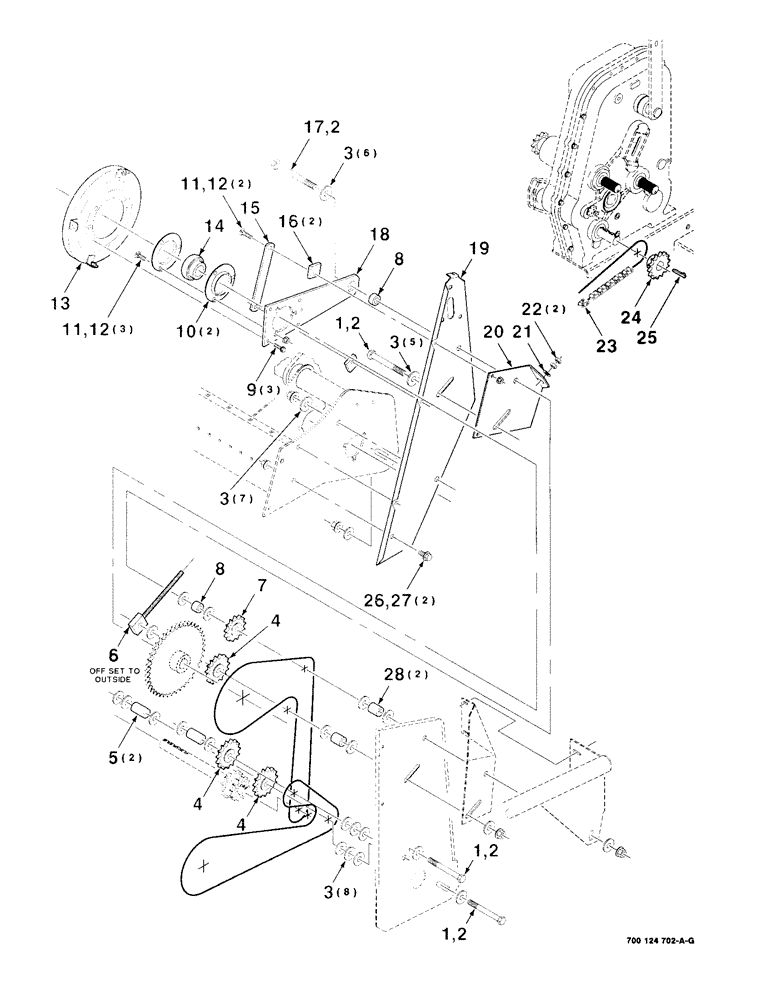

Запчасти Case IH 8725 (2-2) - DRIVE ASSEMBY, UPPER

1

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

5/8-11 x 5-1/2 C

3шт.

2

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

4шт.

3

700711165

WASHER,17.3mm ID x 45.21mm OD x 4.06mm Thk

5/8 HARDENED WIDE PLAIN WASHER

26шт.

4

541857R92

SPROCKET,15T

- idler, 15 tooth

3шт.

5

6843825

SPACER

(54 long)

2шт.

6

700124710

ROD

WA

1шт.

7

154113C91

DRIVE SPROCKET

SPROCKET - idler, 13 tooth

1шт.

8

700126600

SPACER

(16 long)

2шт.

9

163-41

SCREW,Sl Hex Wshr Hd, 5/16" - 18 x 1 1/4"

5/16-18 X 1-1/4 HWHMS

3шт.

10

T27207

FLANGED BEARING

FLANGE - bearing

2шт.

11

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

5шт.

12

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

5шт.

13

6572846

RING

WA - grass

1шт.

14

571588R92

BALL BEARING,1.3755" ID x 72 mm OD x 1"

- spherical

1шт.

15

700124706

STRAP

1шт.

16

700124848

STOP

2шт.

17

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8-11 X 6 C

1шт.

18

700124707

ARM

- left

1шт.

19

700124709

PANEL

- left, auger mounting

1шт.

20

700124708

MOUNTING PARTS

MOUNTING

1шт.

21

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

1шт.

22

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

23

241-1416

LINK

- offset #60

1шт.

REF 23: PER DEALER RESEARCH CHAIN REQUIRED IS 53 PITCHES LONG, PLUS ONE OFF, PLUS ONE CONNECTOR. CNS/CAM 6/9/98

1шт.

24

700708553

SPROCKET ASSY.

SPROCKET - 60B14 tooth

1шт.

25

249-1

KEY

1/4 X 1/4 X 1-3/4 GIB KEY

1шт.

26

121-425

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2-13 X 1 HFS GR8

2шт.

27

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.

28

300830

SPACER

(38 long)

2шт.
