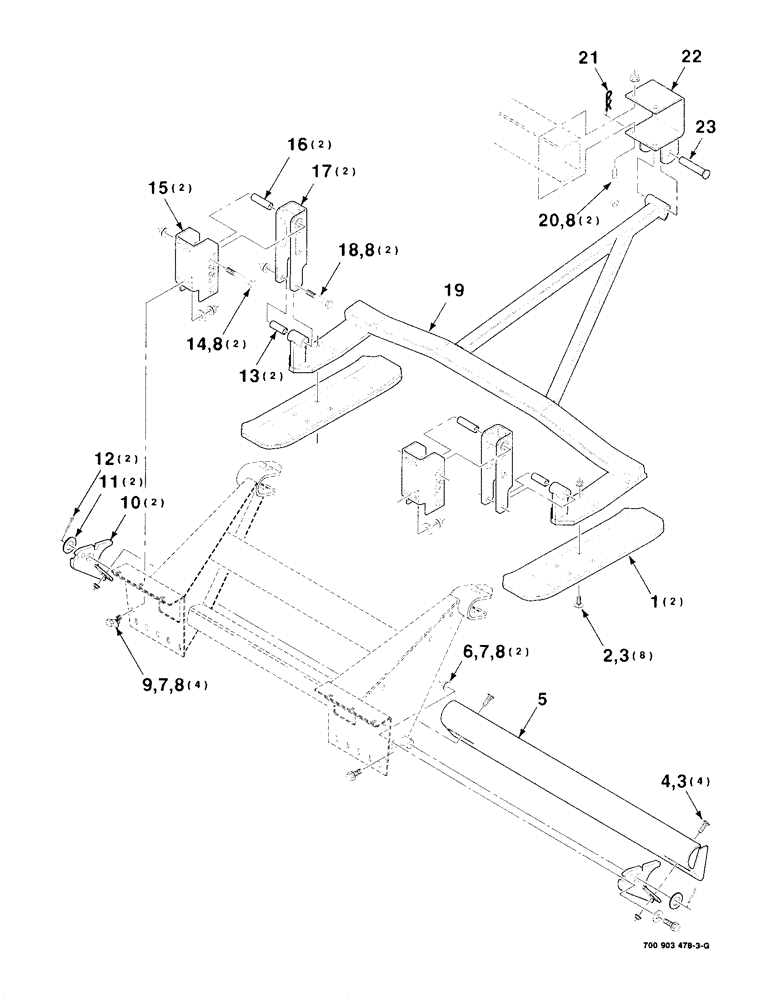

Запчасти Case IH 8725 (5-2) - SKID SHOE ASSEMBLY

1

6288971

SKID/SHOE

SKID - shoe

2шт.

2

118-140

PLOW BOLT,3/8"-16 x 1 1/8", G5

3/8-16 X 1-1/4 PB

8шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

12шт.

4

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

4шт.

5

1663996

TRAY

1шт.

6

8701237

BOLT

1/2-13 X 1-1/2 HFS GR8

2шт.

7

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

6шт.

8

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

12шт.

9

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

1/2-13 X 1-1/4 HFS GR8

4шт.

10

1663921

BRACKET

- mounting

2шт.

11

495-21106

WASHER,1"

1 HARDENED PLAIN WASHER

2шт.

12

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

2шт.

13

6289151

SPACER

1-31/32 LONG

2шт.

14

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

2шт.

15

1664622

ANCHOR

LINK - upper

2шт.

16

6289169

SPACER

2-5/8 LONG

2шт.

17

1664614

LINK

- upper

2шт.

18

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1/2-13 X 3-1/4 C

2шт.

19

700106637

SHOE

FRAME - mounting

1шт.

20

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

1/2-13 X 4-1/2 C

2шт.

21

T54573

PIN

.125 X 2-1/2 HAIR PIN COTTER

1шт.

22

6288989

CLAMP

1шт.

23

39-51260

HEADED PIN,19.05mm OD x 95.25mm L

1шт.
