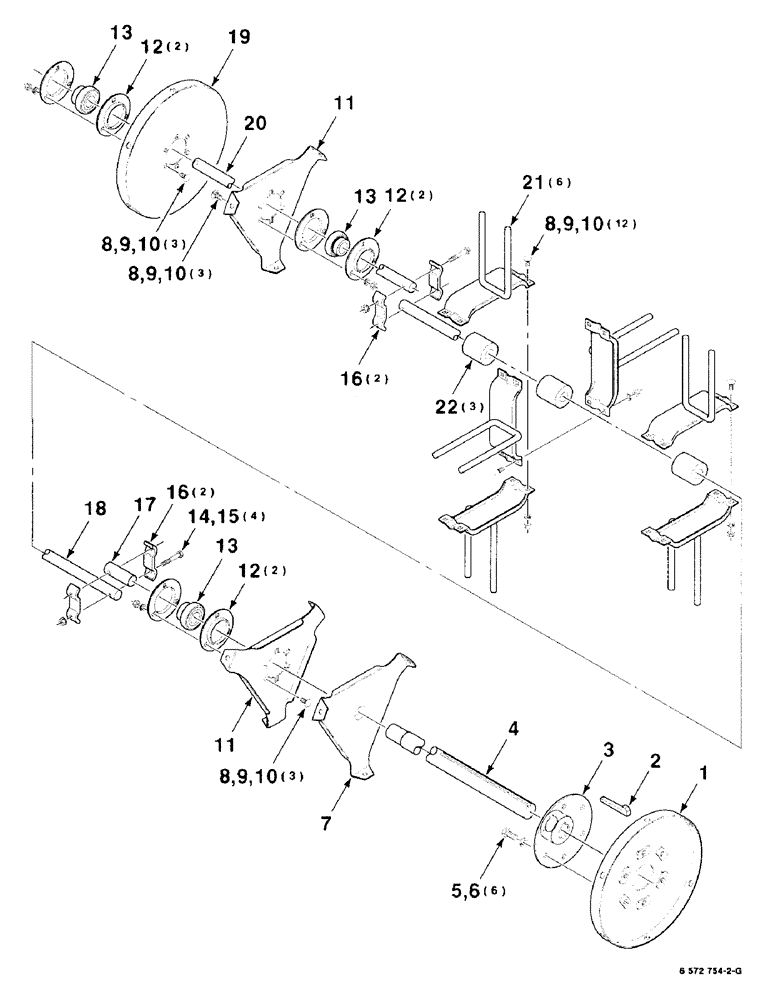

Запчасти Case IH 8725 (3-12) - PICKUP AUGER TINE ASSEMBLIES

1

389460

SUPPORT

BULKHEAD

1шт.

2

761304

KEY

3/8 X 3/8 X 2-1/2 GIB KEY

1шт.

3

6572796

SUPPORT

HUB

1шт.

4

700122889

SHAFT

- drive

1шт.

5

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

6

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

7

156018

BEARING ASSY

BULKHEAD

1шт.

8

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

21шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

21шт.

10

425-105

NUT,5/16"-18, G5

21шт.

11

207027

SUPPORT

BULKHEAD

2шт.

12

462360R1

FLANGED BEARING

6шт.

13

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

BEARING

3шт.

14

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

15

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

4шт.

16

155457

ARM

4шт.

17

6103253

SHAFT

STUB SHAFT

1шт.

18

155838

SHAFT

1шт.

19

HFI155275

SUPPORT

BULKHEAD

1шт.

20

6572994

SHAFT

CONTROL SHAFT

1шт.

21

252866

FINGER

6шт.

22

27391

BUSHING

FINGER ROLLER BUSHING

3шт.
