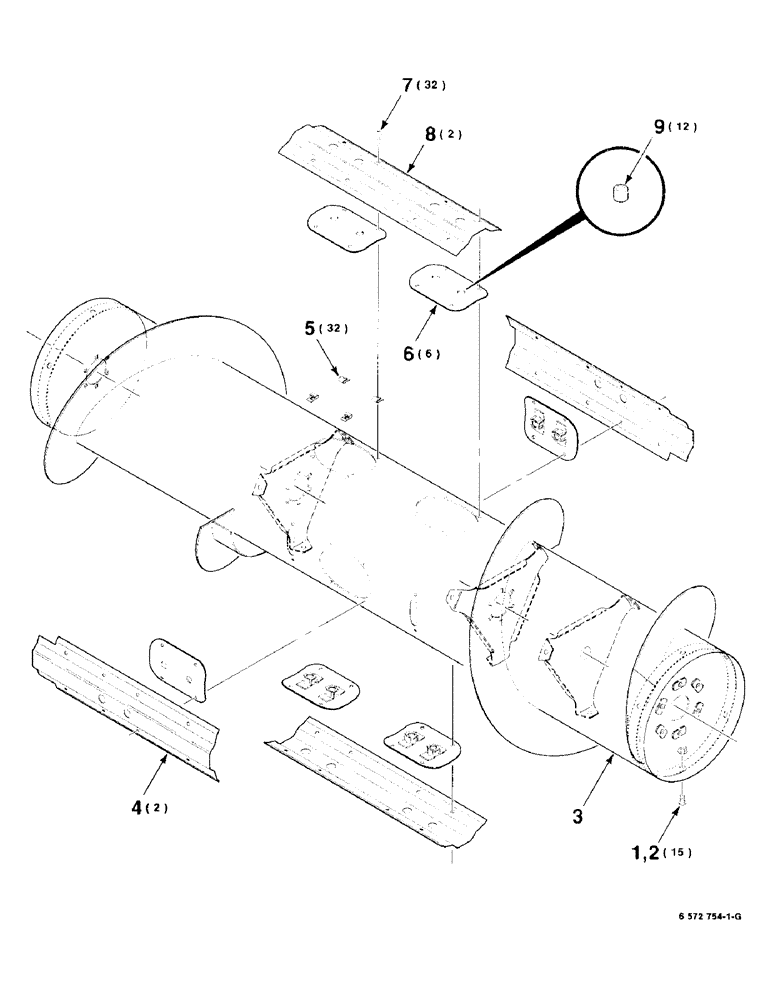

Запчасти Case IH 8725 (3-10) - PICKUP AUGER ASSEMBLY

1

440-13812

SCREW,Cross Pan Hd, 3/8"-16 x 3/4"

3/8-16 X 3/4 CRPHMS

15шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

15шт.

3

6283543

TUBE ASSY.

AUGER WA - tube

1шт.

4

700128197

COVER

2шт.

5

445406

SPRING NUT,Tinn, 1/4"-14

14-10 TYPE J SPRING NUT

32шт.

6

155507

LARGE PLATE

PLATE ASSEMBLY (includes item 9)

6шт.

7

766659

SCREW

14-10 X 1 CRPHTFTS TYPE AB

32шт.

8

700128198

COVER

2шт.

9

27029

BUSHING

FINGER BUSHING

12шт.
