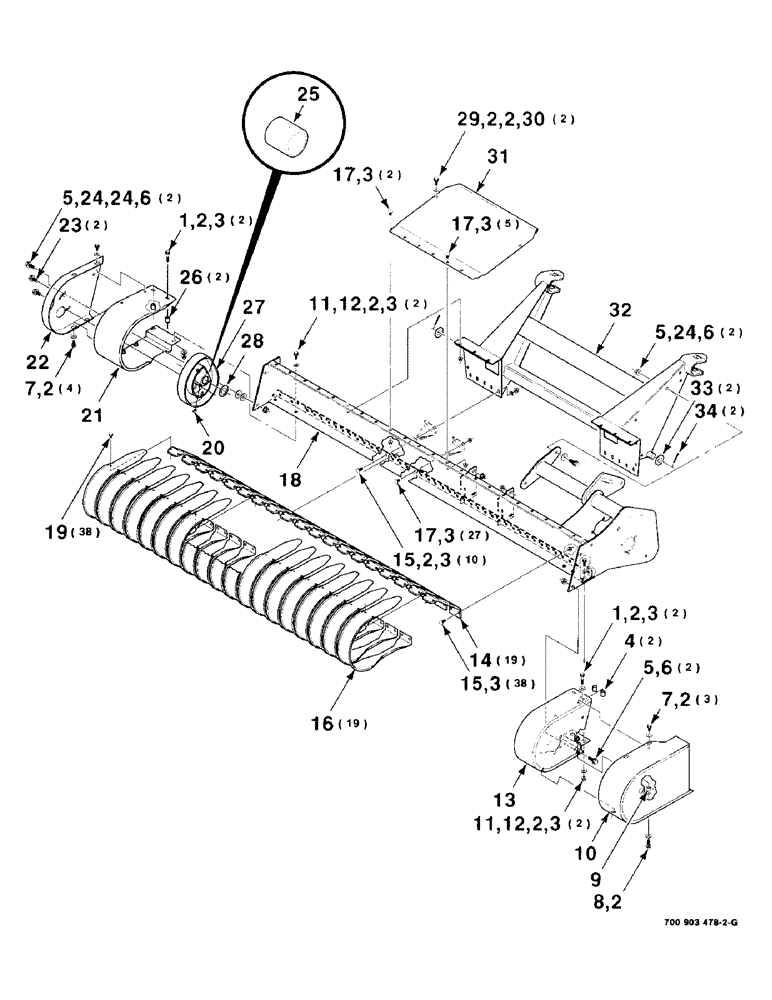

Запчасти Case IH 8725 (3-08) - HEADER FRAME, WRAPPERS AND MOUNTING ASSEMBLIES

1

700711134

SCREW

3/8-16 X 1-3/4 HFS GR8

4шт.

2

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

30шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

90шт.

4

700116065

SPACER

2шт.

5

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

1/2-13 X 1-1/4 HFS GR8

6шт.

6

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

6шт.

7

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

7шт.

8

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

1шт.

9

22586N

SPACER,3/8" Pipe x 9/16"

- 14.29

1шт.

10

6183339

SHIELD

1шт.

11

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

12

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

13

6288724

MOUNTING PARTS

MOUNTING WA - left

1шт.

14

6225874

SUPPORT

19шт.

15

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

48шт.

16

6288765

GUARD

- tine

19шт.

17

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

34шт.

18

700124718

CHANNEL

WA

1шт.

19

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

38шт.

20

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

21

6288732

MOUNTING PARTS

MOUNT - wrapper, right

1шт.

22

6146799

COVER

- right

1шт.

23

121-425

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2-13 X 1 HFS GR8

2шт.

24

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

6шт.

25

6144422

BUSHING

1шт.

26

6146492

SPACER

- 20.62

2шт.

27

6225866

TRACK CHAIN

CAM - track (includes item 25)

1шт.

28

52324

BUSHING

1-1/4 X 10 GAUGE NRMB

1шт.

29

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

30

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.

31

6183529

PANEL

- center

1шт.

32

6621338

SLIDE

ARM WA

1шт.

33

495-21106

WASHER,1"

1 HARDENED PLAIN WASHER

2шт.

34

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

2шт.
