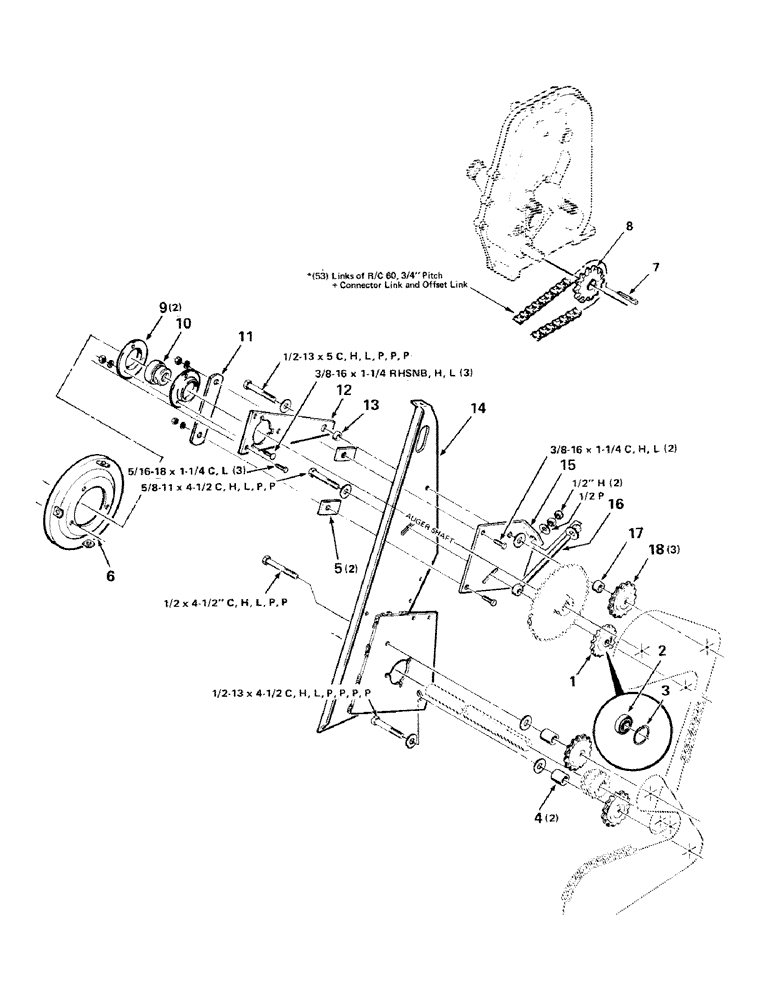

Запчасти Case IH 6 (18) - DRIVE ASSY., IDLER AND CHAIN TIGHTENER

1

6511612

SPROCKET ASSY.

IDLER SPROCKET ASSEMBLY - 50-P, 17-tooth

1шт.

2

51185

BEARING, BALL

BEARING - cylindrical

1шт.

3

7052798

RING, SNAP

RING - retainer

1шт.

4

494534

SPACER

1-1/2 long

2шт.

5

6157945

PAD

2шт.

6

6572846

RING

- grass

1шт.

7

61952

KEY

1/4 x 1/4 x 1-3/4 gib key

1шт.

8

700708553

SPROCKET ASSY.

SPROCKET, 60-P, 14-tooth

1шт.

9

617863R1

FLANGED BEARING

- bearing

2шт.

10

700708091

SPHERICAL BEARING,34.93 mm ID x 72 mm OD x 38.89 mm

BEARING - spherical

1шт.

11

6183669

STRAP

1шт.

12

6572838

ARM

1шт.

13

6562029

BUSHING

1шт.

14

6494595

PANEL

- auger, left

1шт.

15

6268510

PLATE

- tightener

1шт.

16

6268460

SPECIAL BOLT

DRAWBOLT

1шт.

17

158469

SPACER

11/16 long

1шт.

18

565442R91

SPROCKET

IDLER SPROCKET, 50-P, 17-tooth

3шт.

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16-18 x 1-1/4 C

3шт.

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 x 1-1/4 C

2шт.

703223

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1/2-13 x 4-1/2 C

2шт.

7701279

BOLT

1/2-13 x 5 C

1шт.

873745

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 5

5/8-11 x 4-1/2 C

1шт.

700054

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 RHSNB

3шт.
