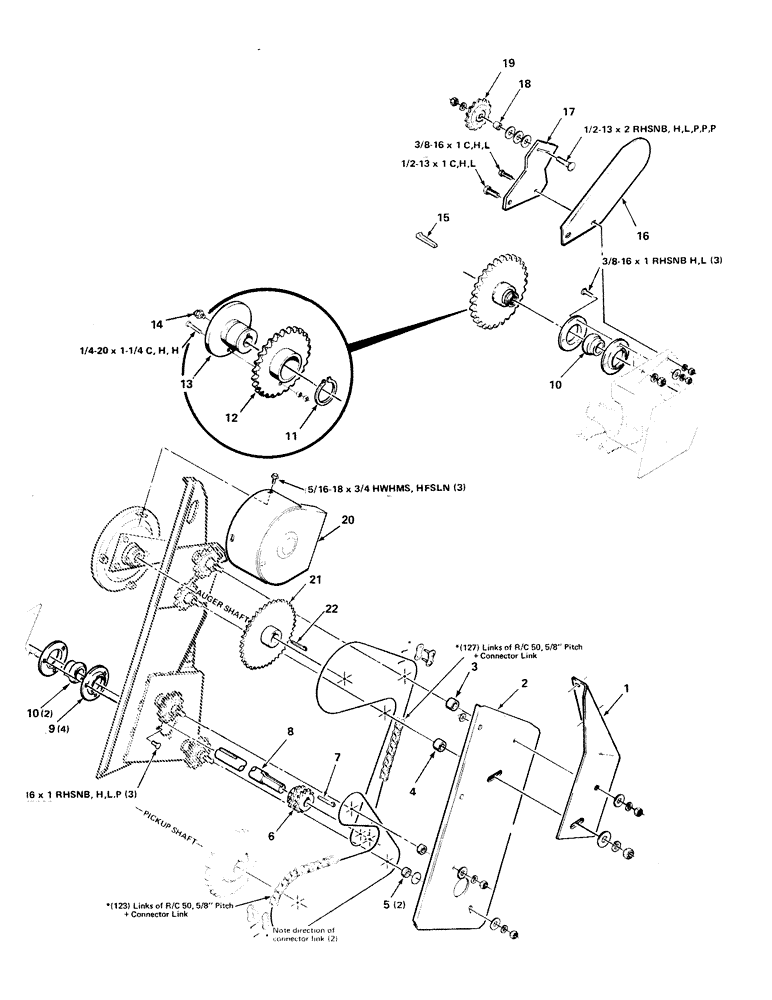

Запчасти Case IH 6 (16) - DRIVE ASSEMBLY, LEFT

1

6268502

SUPPORT

REINFORCEMENT

1шт.

2

6268528

SHIELD

- chain

1шт.

3

384784

SPACER

1-5/16 long

1шт.

4

6268494

SPACER

1-3/16 long

1шт.

5

159970

SPACER

1/2 Long

2шт.

6

7088966

SPROCKET ASSY.

SPROCKET - double, 50-P, 11-tooth (standard)

1шт.

7088974

GEAR

SPROCKET - double, 50-P, 14-tooth (speed-up)

1шт.

7

761155

BUCKET TOOTH KEY

1/4 x 1/4 x 2 gib key

1шт.

8

6231286

SHAFT

- drive

1шт.

9

50534

FLANGED BEARING

- bearing

4шт.

10

700708094

SPHERICAL BEARING,1.25" ID x 62 mm OD x 35.71 mm

BEARING - spherical

2шт.

11

52605

RING

SNAP RING - external

1шт.

12

6285506

SPROCKET ASSY.

SPROCKET, 60-P, 26-tooth

1шт.

13

6467781

HUB

- sprocket

1шт.

14

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1/4-28 x 90 zerk

1шт.

15

61390

KEY

5/16 x 5/16 x 2-1/2 gib key

1шт.

16

6514582

SHIELD

1шт.

17

6467773

BRACKET

- idler

1шт.

18

159749

SPACER

BUSHING, 9/16 long

1шт.

19

541857R92

SPROCKET,15T

IDLER SPROCKET

1шт.

20

6572887

SHIELD

- grass ring

1шт.

21

6572879

SPROCKET ASSY.

SPROCKET, 50-P, 41-tooth

1шт.

22

761304

KEY

3/8 x 3/8 x 2-1/2 gib key

1шт.

701334

1/4-20 x 1-1/4 C

1шт.

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

1шт.

703959

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1/2-13 x 1 C

1шт.

700047

BOLT

3/8-16 x 1 RHSNB

6шт.

7700248

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

3/8-16 x 2 RHSNB

1шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

3шт.
