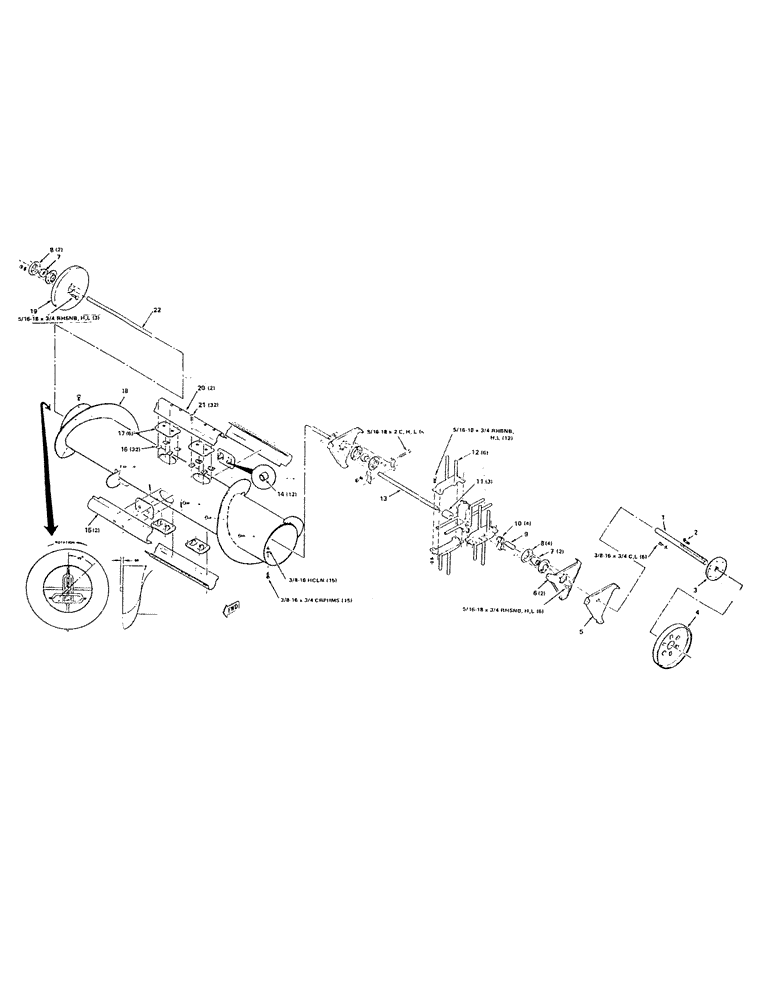

Запчасти Case IH 6 (14) - AUGER ASSEMBLY

1

6572812

DRIVE SHAFT

SHAFT - drive

1шт.

2

761304

KEY

3/8 x 3/8 x 2-1/2 gib key

1шт.

3

6572796

SUPPORT

HUB

1шт.

4

389460

SUPPORT

BULKHEAD

1шт.

5

CAS156018

HEAD

BULKHEAD

1шт.

6

207027

SUPPORT

BULKHEAD

2шт.

7

50302

SPHERICAL BEARING,25.4 mm ID x 52 mm OD x 30.96 mm

- spherical

3шт.

8

462360R1

FLANGED BEARING

- bearing

6шт.

9

6103253

SHAFT

- stub

1шт.

10

155457

ARM

- crank

4шт.

11

27391

BUSHING

- roller, finger

3шт.

12

252866

FINGER

ASSEMBLY - half

6шт.

13

155838

SHAFT

- finger

1шт.

14

27029

BUSHING

- finger

12шт.

15

6225858

COVER

- finger (2 finger)

2шт.

16

74518

NUT

14-10 type J spring nut

32шт.

17

155507

LARGE PLATE

PLATE - finger (includes bushings)

6шт.

18

6283543

TUBE ASSY.

TUBE - auger

1шт.

19

HFI155275

SUPPORT

BULKHEAD

1шт.

20

6225833

COVER

- finger (4 finger)

2шт.

21

766659

SCREW

14-10 CRPHTFTS

32шт.

22

6572994

SHAFT

- control

1шт.

700199

3/8-16 x 3/4 C

6шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5/16-18 x 2 C

4шт.

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 RHSNB

21шт.

700701905

SCREW,Cross Pan Hd, 3/8"-16 x 3/4"

3/8-16 x 3/4 CRPHMS

15шт.

704635

NUT

3/8-16 HCLN

15шт.
